R114.1872.04.BA CH1G
Insert
Part number R114187204BACH1G

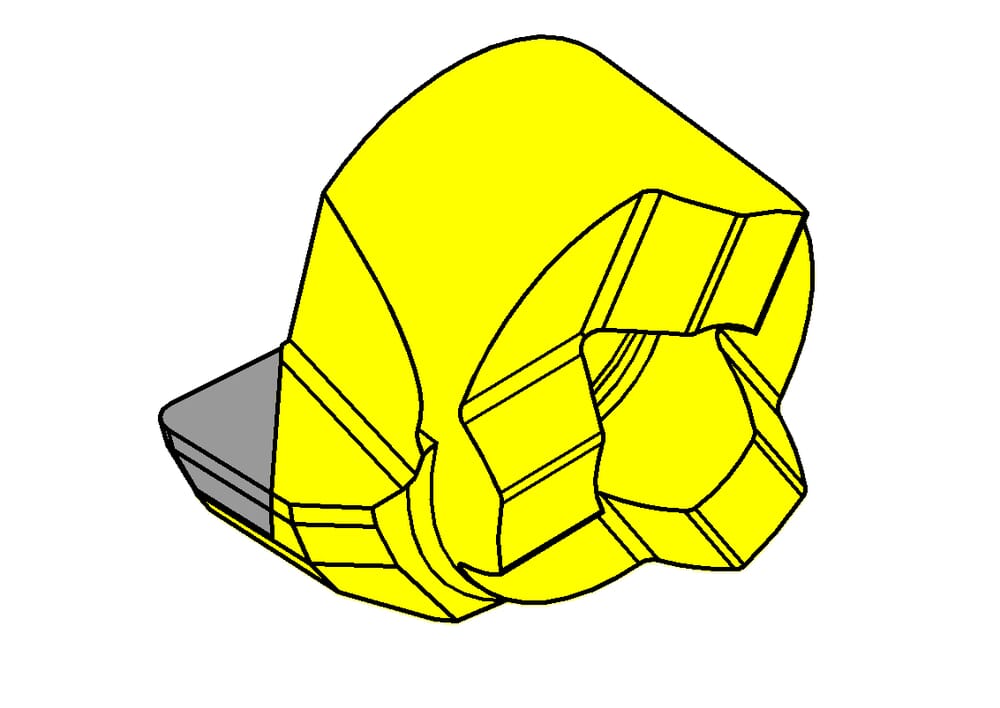

HORN Insert R114.1872.04.BA CH1G Turning
Please note:Technical instructions
Top radius (r)
0.4
mm
free-angle
18
°
Head size (a)
11.75
mm
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN-31109084R
Katalog_SSC
311090R
Setting range radial (f)
7.25
mm
Tooth diameter, head diameter (d)
9
mm
Cutting insert height, Cutting insert thickness (s)
5.3
mm
Smallest bore diameter (Dmin)
12.5
mm
Downloads | |
---|---|
R114187204BA.STP | Download |
Download all files |
