229.0500.34 AS62
insert
Materialnummer 229050034AS62

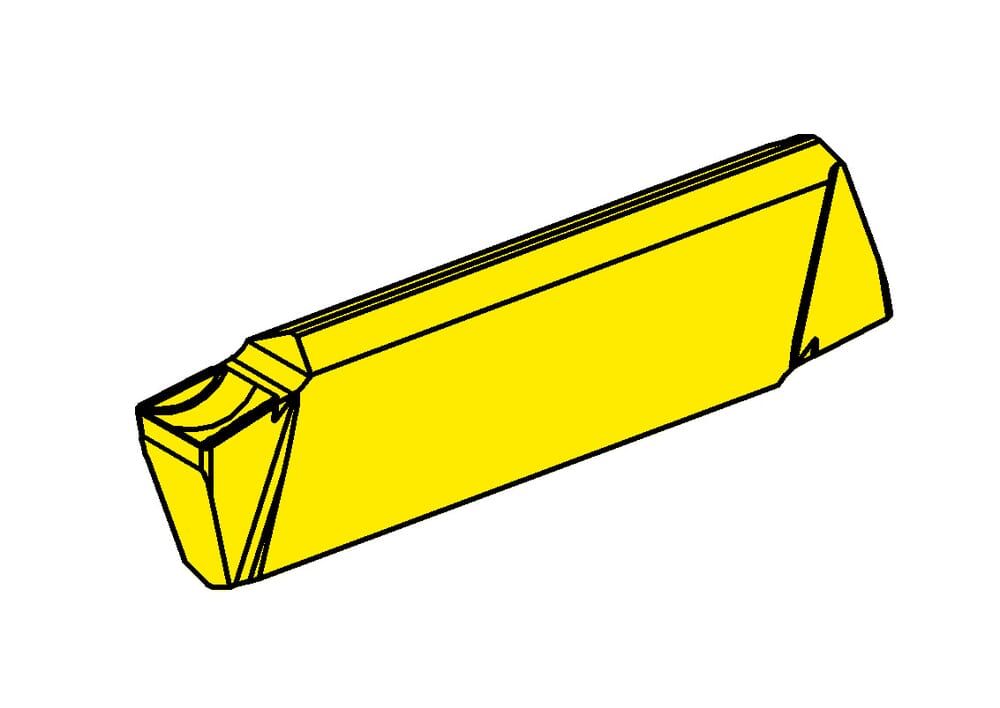

HORN insert 229.0500.34 AS62 for Turning
Bitte beachten:Technologieinformationen
Cutting edge height (S)
6 mm
corner radius left hand (REL)
0.4 mm
corner radius right hand (RER)
0.4 mm
Insert length (INSL)
30.4 mm
Cutting width (CW)
5.03 mm
| Downloads | |
|---|---|
| 229_0500_34_AS62-DXF.DXF | Download |
| 229_0500_34_AS62-STP.STP | Download |
| 229_0500_34_AS62-ISO.XML | Download |
| 229_0500_34_AS62-DIN.XML | Download |
| Alle Dateien herunterladen | |
