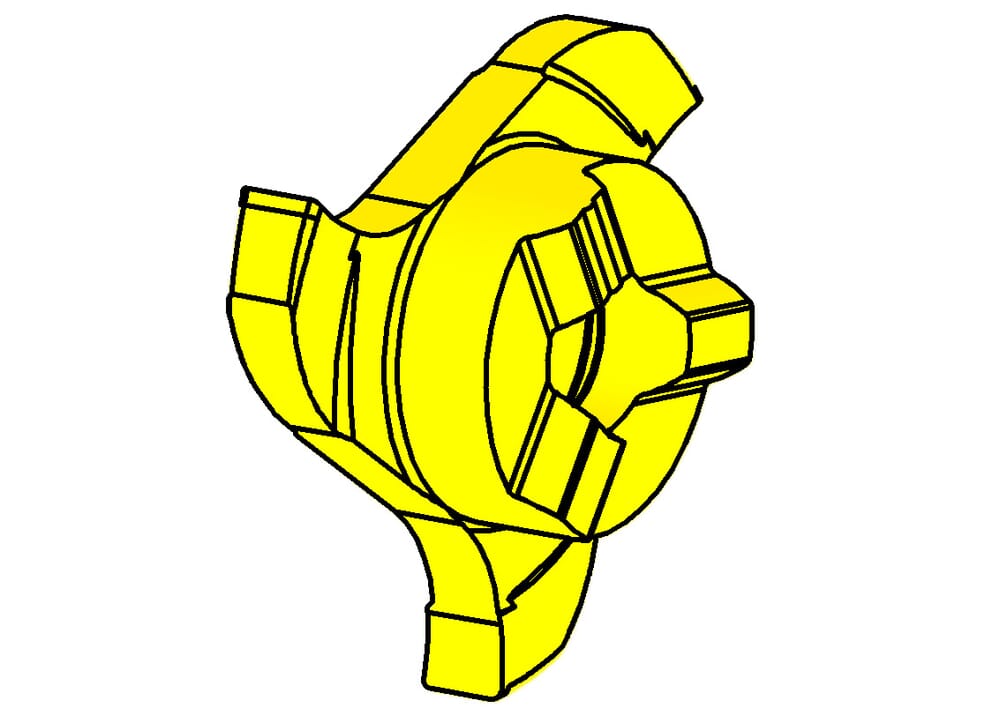

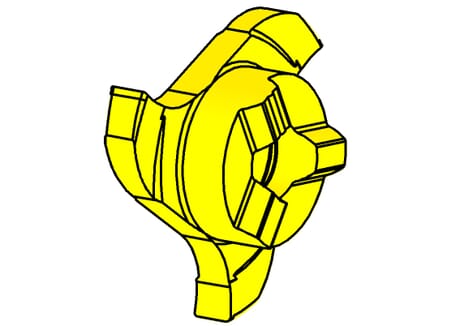

308.0250.00 AS45
Schneidplatte
Materialnummer 308025000AS45
HORN Schneidplatte 308.0250.00 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
15.7
mm
Zähnezahl (Z)
3
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
plating-seat-size
0
Schneidbreite (w)
2.5
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
4.5
mm
Eckenradius (r)
0.2
mm
| Downloads | |
|---|---|
| 308025000_20210630_122232418.STP | Download |
| 308_0250_00_20180430_143101256.DXF | Download |
| Alle Dateien herunterladen | |
