311.0010.20 AS45
Schneidplatte
Materialnummer 311001020AS45

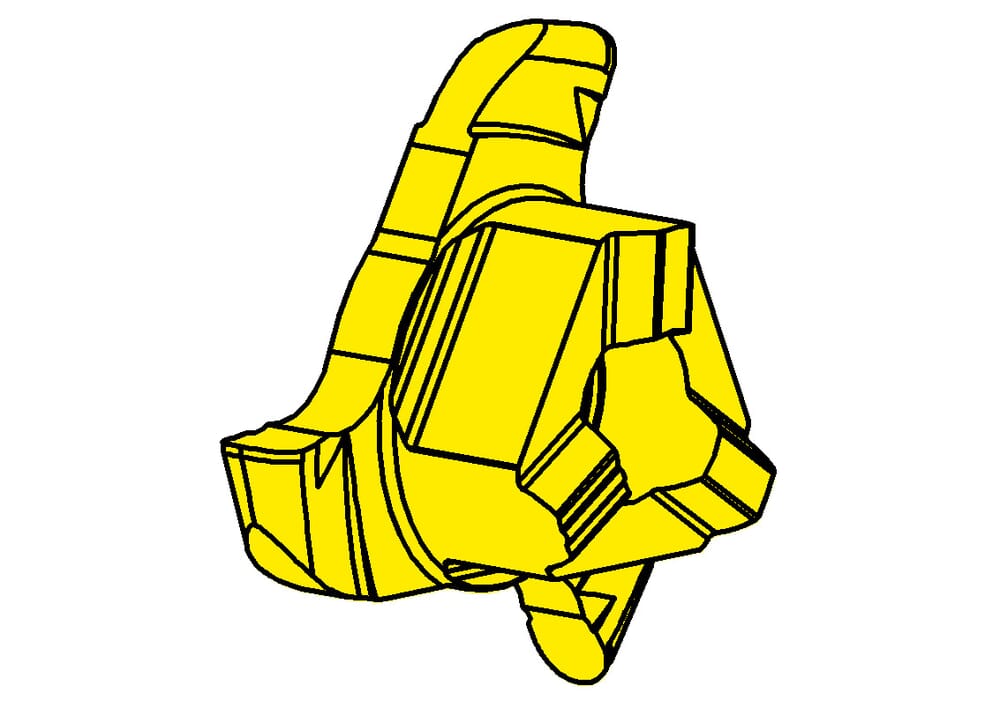

HORN Schneidplatte 311.0010.20 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
17.7
mm
Zähnezahl (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Schneidbreite (w)
2
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
5.75
mm
Radius, Vollradius (r)
1
mm
Downloads | |
---|---|
311001020_20210705_114052230.STP | Download |
311001020.DXF | Download |
Alle Dateien herunterladen |
