311.0160.00 TN35
Schneidplatte
Materialnummer 311016000TN35

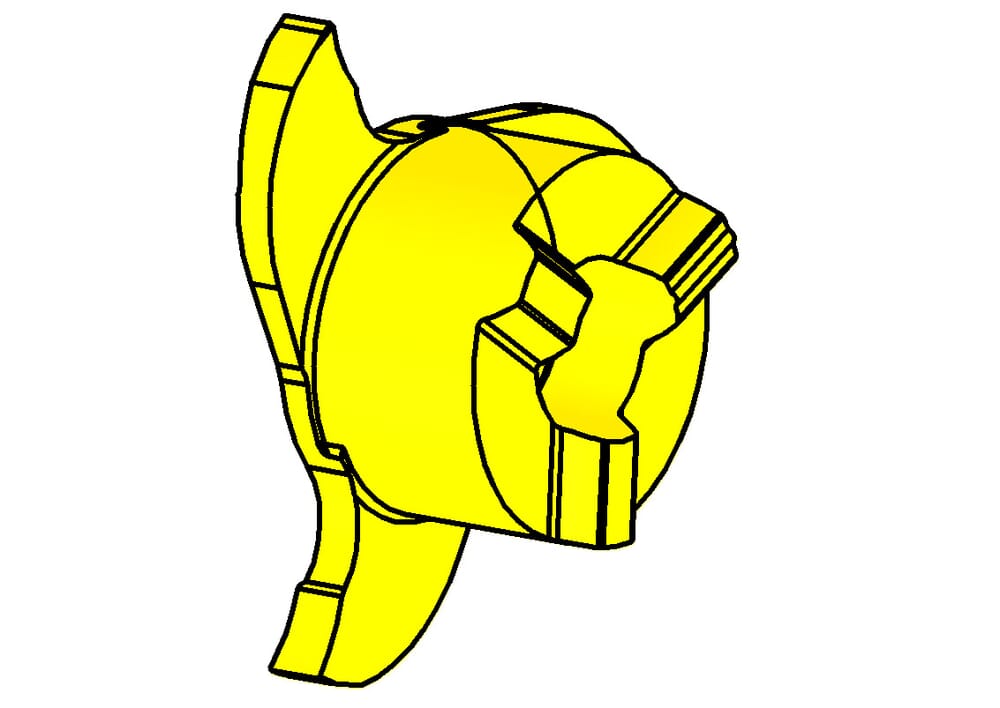

HORN Schneidplatte 311.0160.00 TN35 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
17.7
mm
Zähnezahl (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Schneidbreite (w)
1.71
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Nennweite (Nw)
1.6
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
5.75
mm
Downloads | |
---|---|
311016000_20230112_134949565.STP | Download |
311016000_20210625_153813669.DXF | Download |
Alle Dateien herunterladen |
