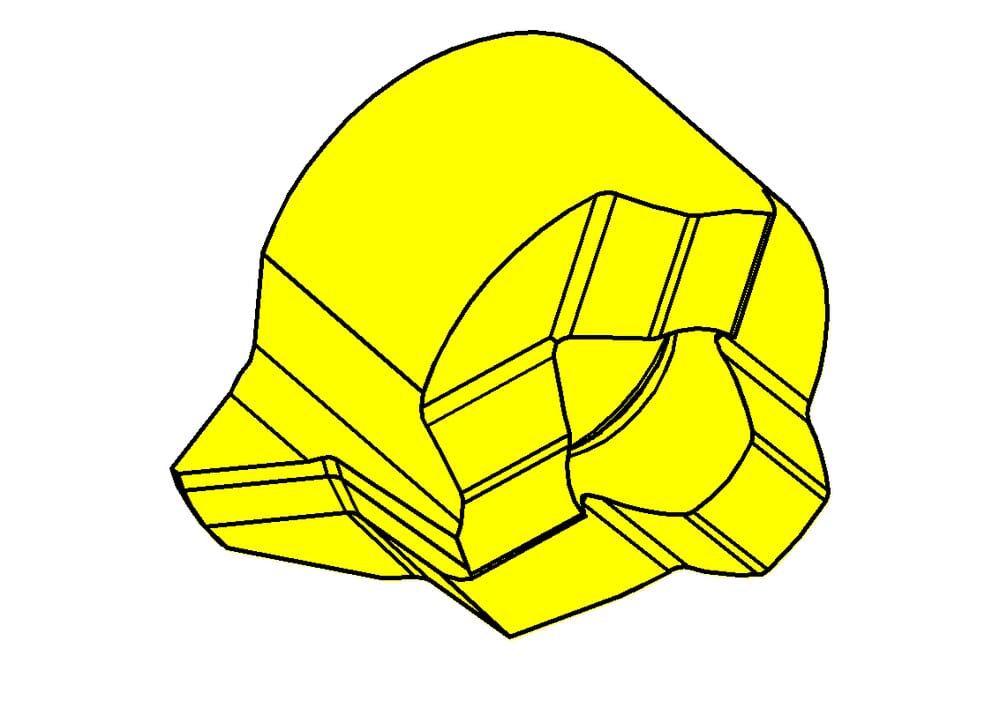

L107.0510.1.01 TH35
Schneidplatte
Materialnummer L1070510101TH35

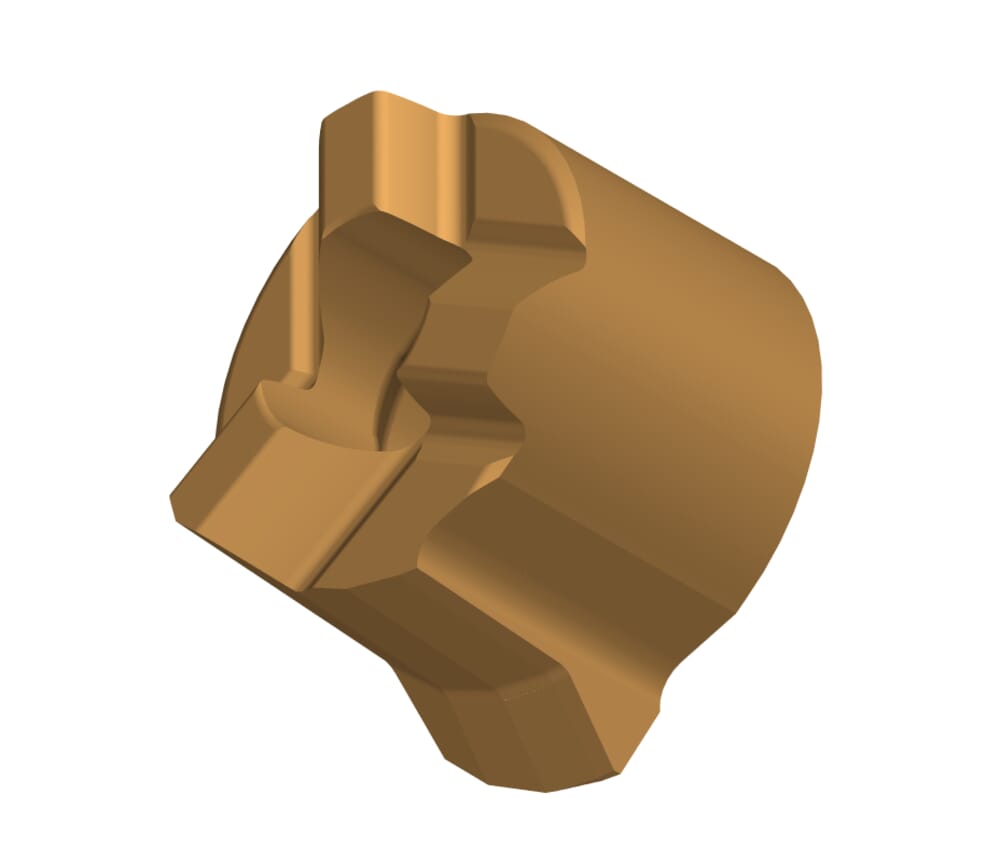

HORN Schneidplatte L107.0510.1.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen

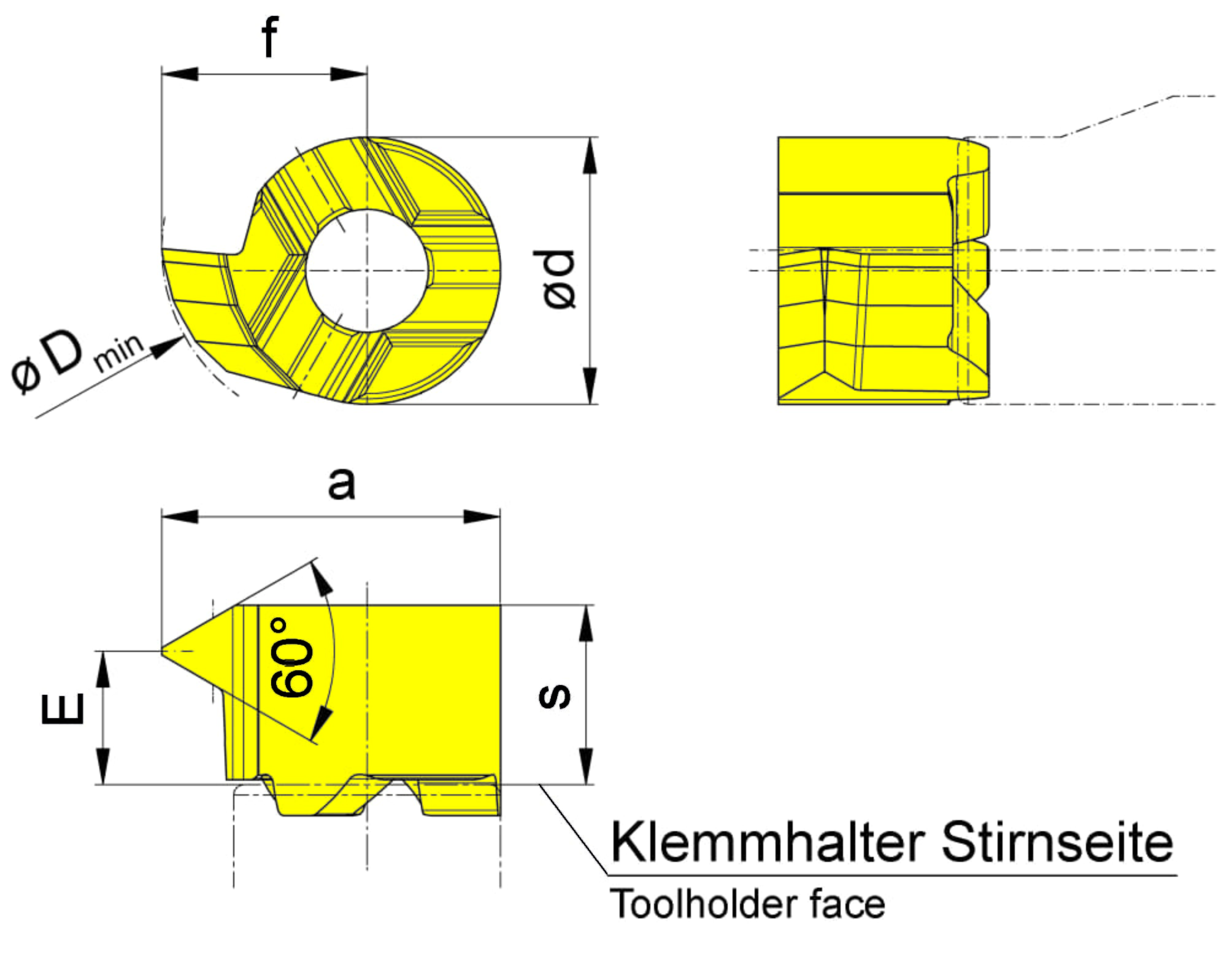

Einstellmaß Länge (E)
2.8 mm
maximale Steigung (Pmax)
1.25 mm
Steigung (P)
1 mm
Kleinster Bohrungsdurchmesser (Dmin)
7 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.5 mm
number-of-teeth
1 St.
Verzahnungsdurchmesser, Kopfdurchmesser (d)
5.2 mm
Schneidplattenbreite (a)
6.6 mm
Einstellmaß radial (f)
4 mm
Katalog_SSC
107052L
ISO_SSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L107_0510_1_01_TH35-DXF.DXF | Download |
| L107_0510_1_01_TH35-STP.STP | Download |
| L107_0510_1_01_TH35-ISO.XML | Download |
| L107_0510_1_01_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
