LNK224.3215.2.01.IK
Cartridge
Part number LNK2243215201IK

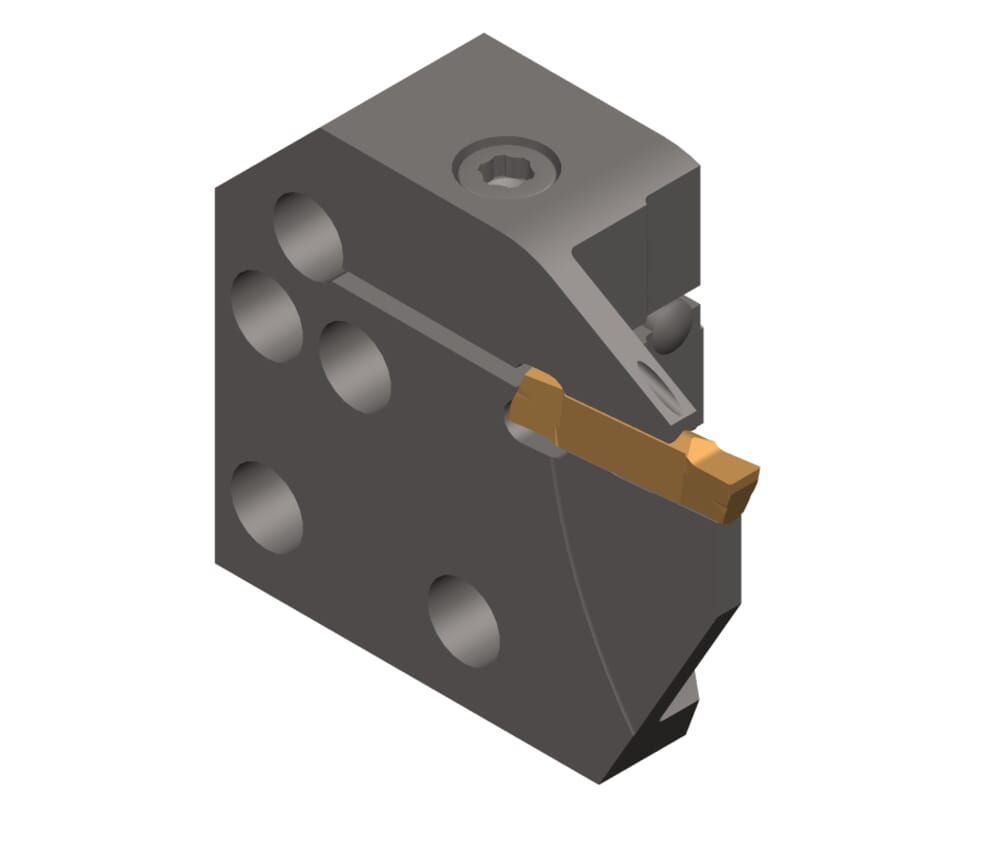

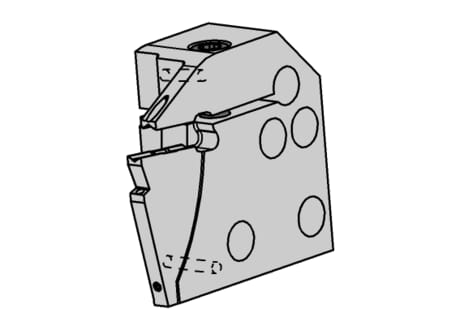

HORN Cartridge LNK224.3215.2.01.IK for Turning
Please note:Technical instructions
clamping-range-min-met
2
mm
Width of groove (w)
2
mm
Katalog_CCTMS
220002
ISO_CCTMS
HORN22000293$$
DIN_CCTMS
HORN-22000293
Katalog_CCTWS
224018
DIN_CCTWS
HORN-224010058N
ISO_CCTWS
HORN224010058N$$$$$

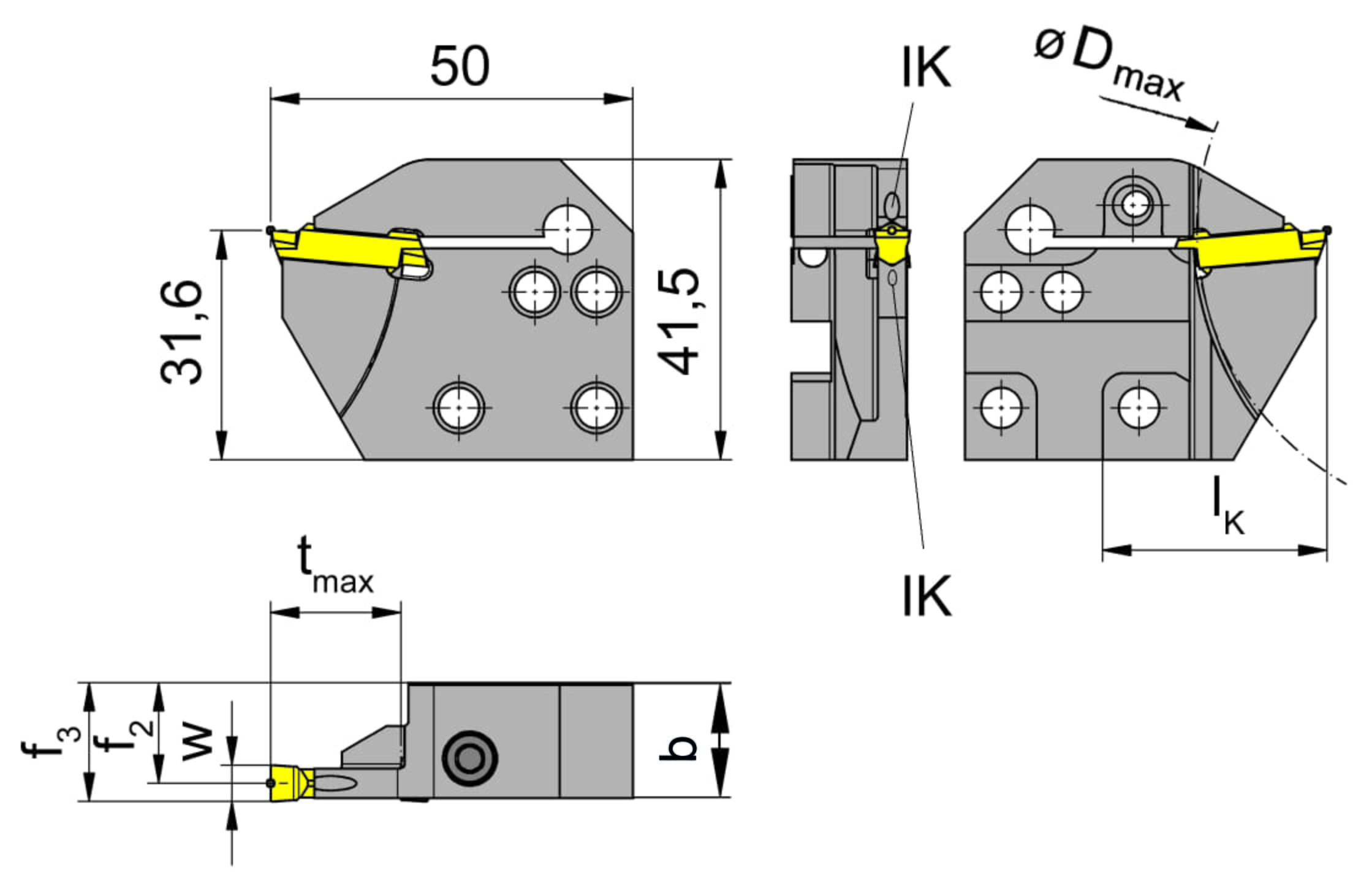

Adjustment dimension of system cassette formula (f3)
f2+w/2
clamping-range-max-met
2.4
mm
eclass-shortcut
21-18-10-04
Maximum workpiece diameter (Dmax)
80
mm
Maximum depth of groove (tmax)
18
mm
Length of unit cassette to cutting edge (lK)
31
mm
Cassette thickness (b)
16.1
mm
Adjustment dimension cutting center (f2)
15.4
mm
| Downloads | |
|---|---|
| LNK2243215201IK_20220902_133851437.STP | Download |
| LNK2243215201IK.DXF | Download |
| Download all files | |
