N105.TX15.24.03.B1 AN25

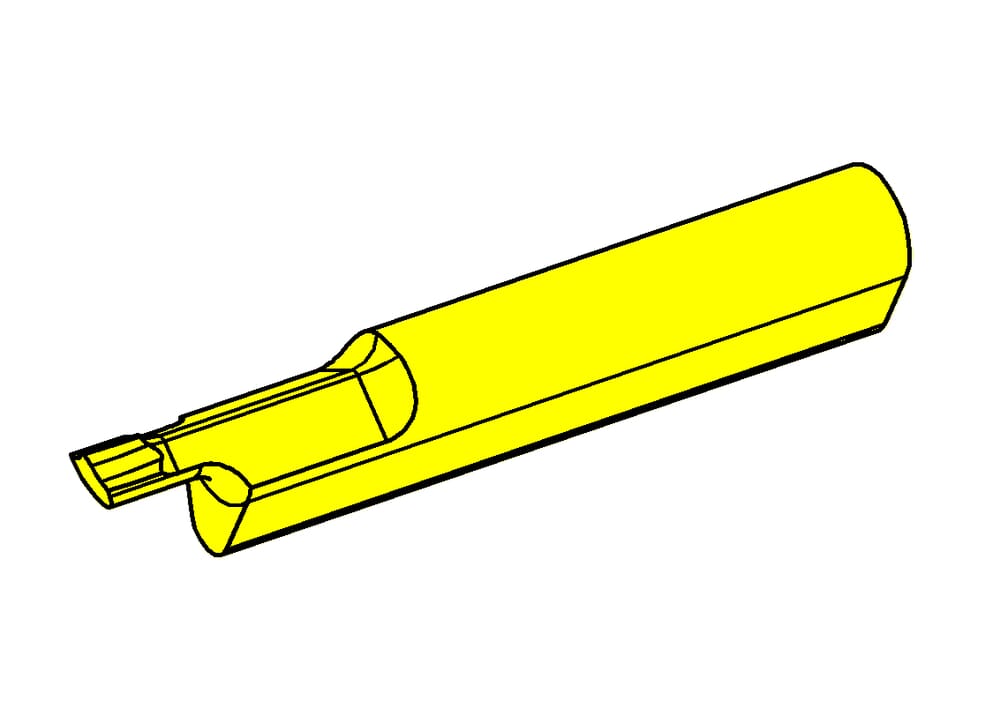

105 style broach insert - B1 geometry
Part number N105TX152403B1AN25
HORN 105 style broach insert - B1 geometry N105.TX15.24.03.B1 AN25 for Broaching
Please note:Technical instructions
Pilot diameter (Grundbohrung)
2.3
mm
Torx (Torx)
T15
eclass-shortcut
21-18-20-11

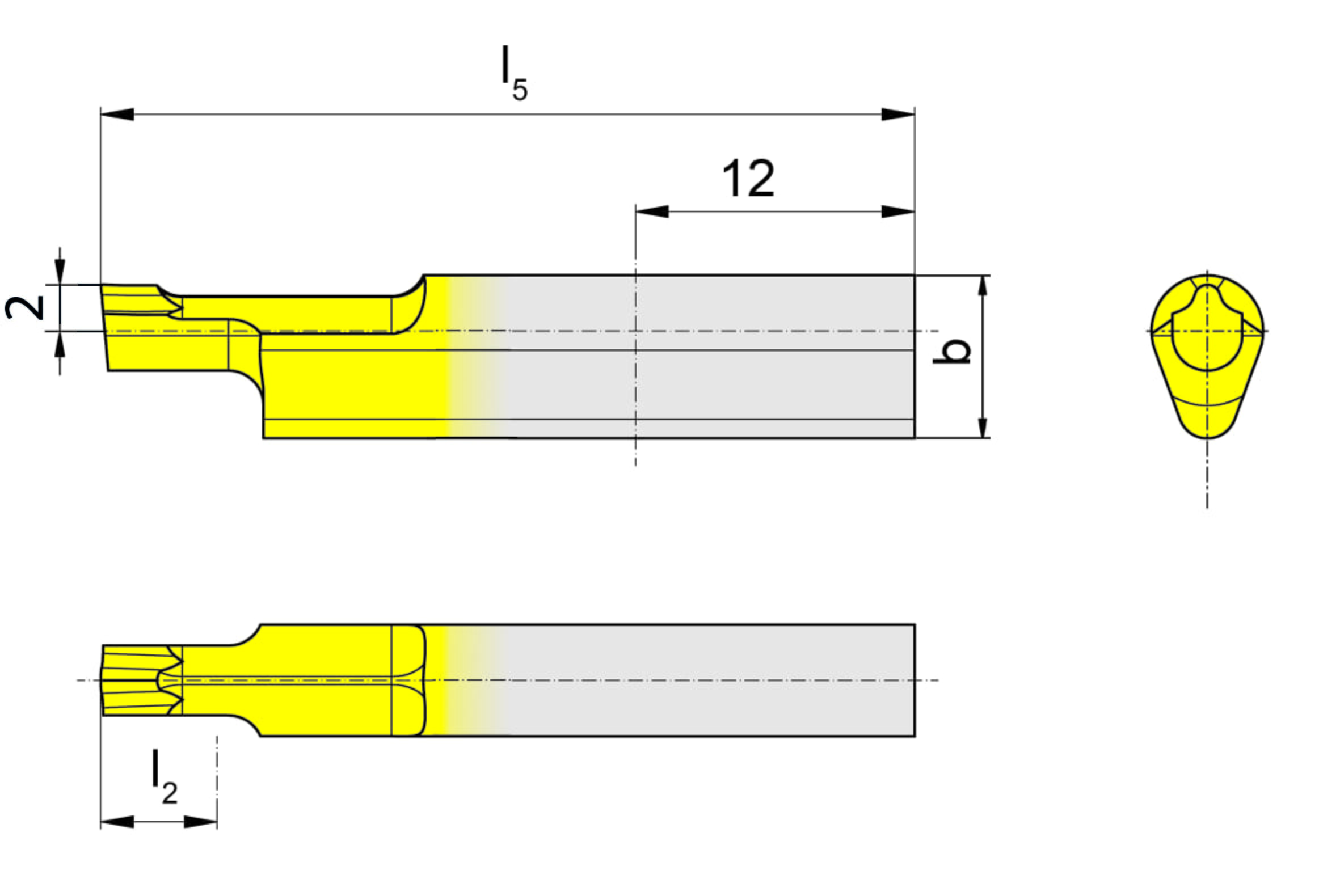

Width of blank (b)
7
mm
ISO_SSC
HORN105125$85N$$$$$
DIN_SSC
HORN-10512585N
Katalog_SSC
105125
Effective cutting length (l2)
4
mm
Total length (l5)
35
mm
| Downloads | |
|---|---|
| N105TX152403B1.DXF | Download |
| N105TX152403B1_20240118_031832799.STP | Download |
| Download all files | |
