217.0090.00 P20
Inserts
Materialnummer 217009000P20
HORN Inserts 217.0090.00 P20 for Turning
Bitte beachten:Technologieinformationen

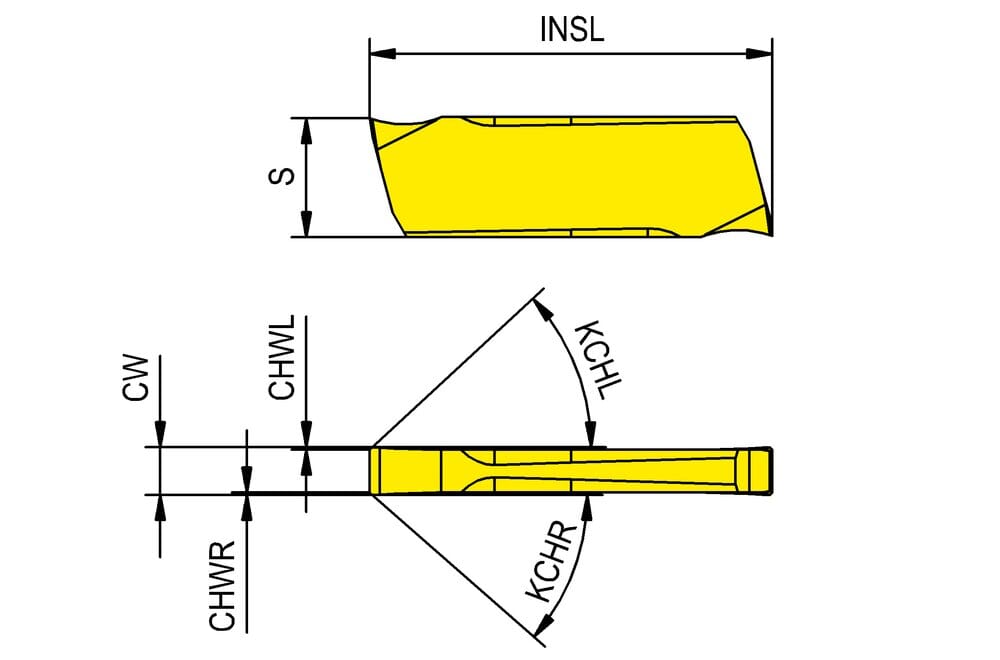

Wide retaining ring (RTRG)
0.9 mm
Cutting edge height (S)
4.9 mm
Insert length (INSL)
16.75 mm
Cutting width (CW)
0.97 mm
| Downloads | |
|---|---|
| 217_0090_00_P20-DXF.DXF | Download |
| 217_0090_00_P20-STP.STP | Download |
| 217_0090_00_P20-ISO.XML | Download |
| 217_0090_00_P20-DIN.XML | Download |
| Alle Dateien herunterladen | |
