229.0600.31 TC92
Inserts
Materialnummer 229060031TC92

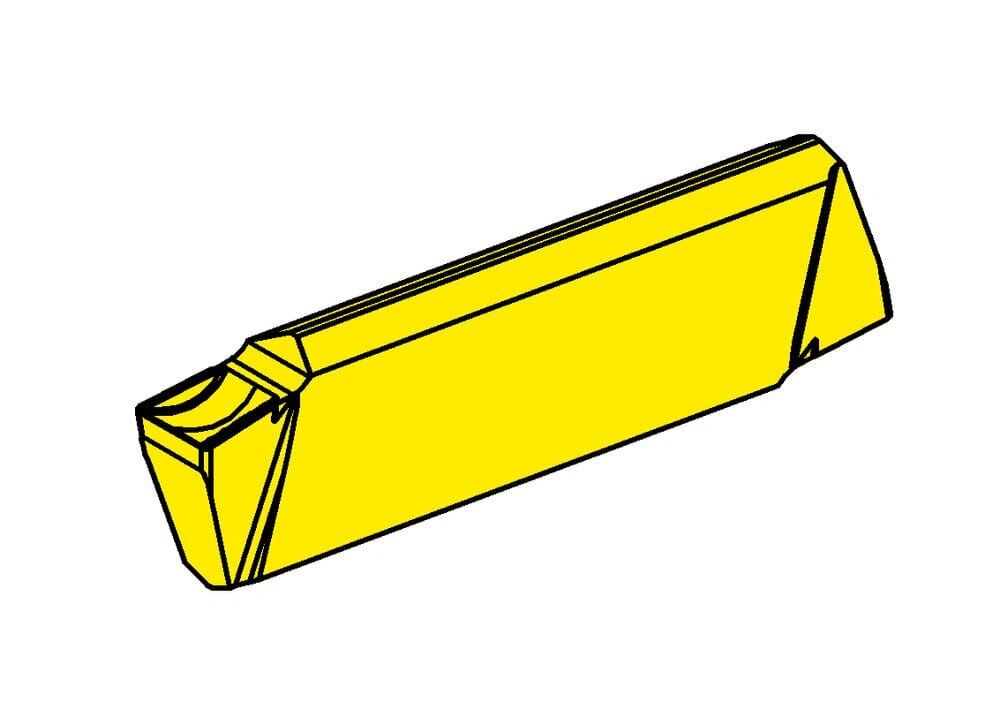

HORN Inserts 229.0600.31 TC92 for Turning
Bitte beachten:Technologieinformationen

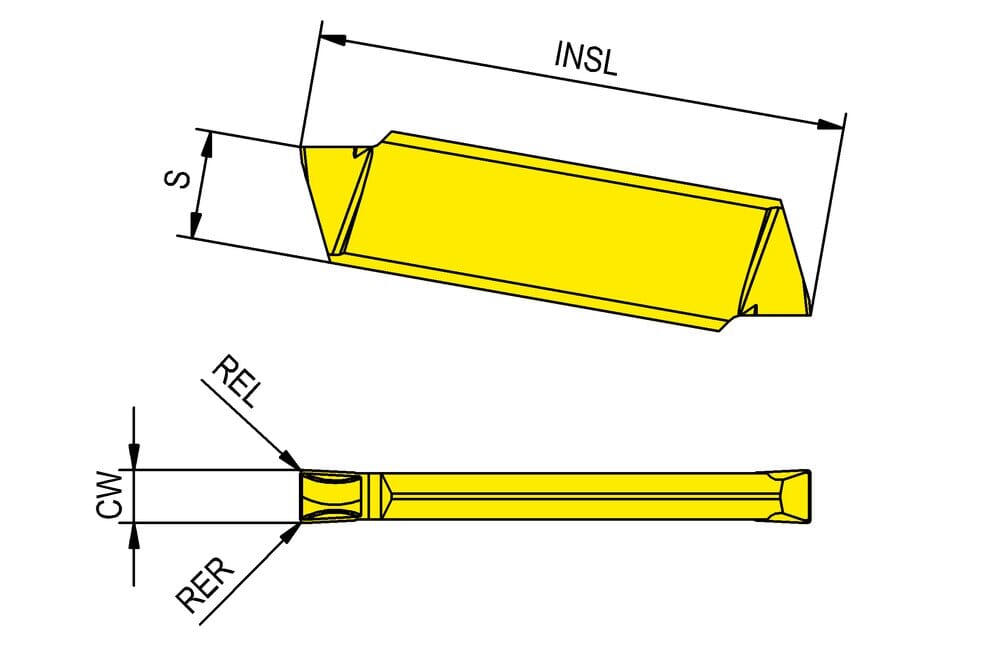

Cutting edge height (S)
6.5 mm
corner radius left hand (REL)
0.4 mm
corner radius right hand (RER)
0.4 mm
Insert length (INSL)
30.6 mm
Cutting width (CW)
6 mm
| Downloads | |
|---|---|
| 229_0600_31_TC92-DXF.DXF | Download |
| 229_0600_31_TC92-STP.STP | Download |
| 229_0600_31_TC92-ISO.XML | Download |
| 229_0600_31_TC92-DIN.XML | Download |
| Alle Dateien herunterladen | |
