306.0010.20 AS45
Schneidplatte
Materialnummer 306001020AS45

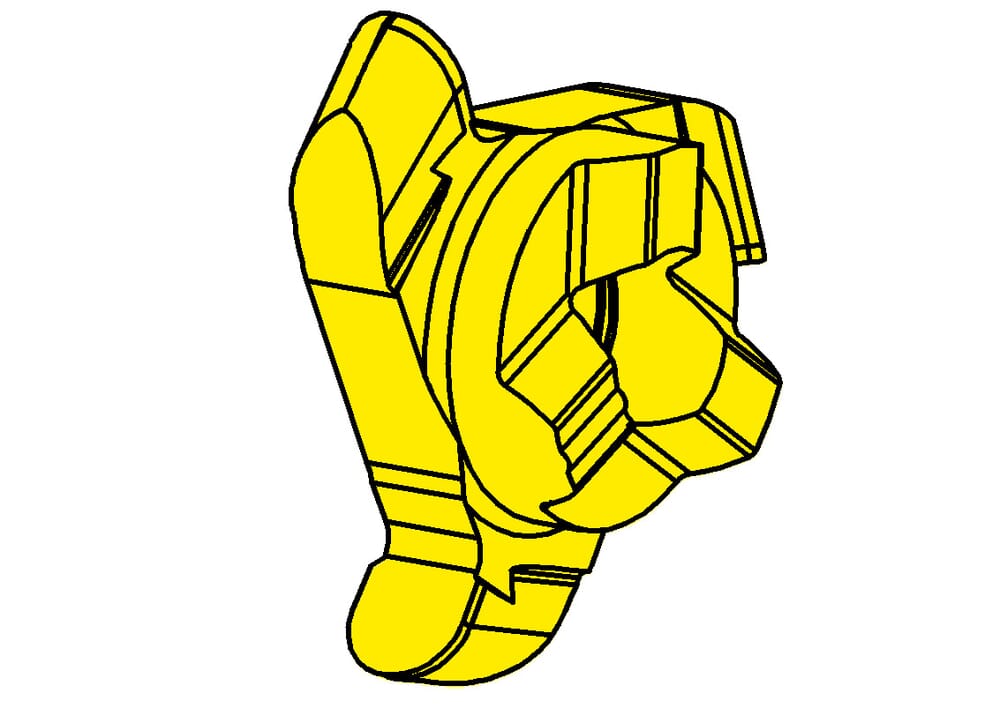

HORN Schneidplatte 306.0010.20 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
11.7
mm
Zähnezahl (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Schneidbreite (w)
2
mm
Maximale Frästiefe, Nuttiefe (tmax)
2.5
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.2
mm
Radius, Vollradius (r)
1
mm
| Downloads | |
|---|---|
| 306_0010_20_AS45-DXF.DXF | Download |
| 306_0010_20_AS45-STP.STP | Download |
| 306_0010_20_AS45-DIN.XML | Download |
| Alle Dateien herunterladen | |
