306.0110.00 TN35
Schneidplatte
Materialnummer 306011000TN35

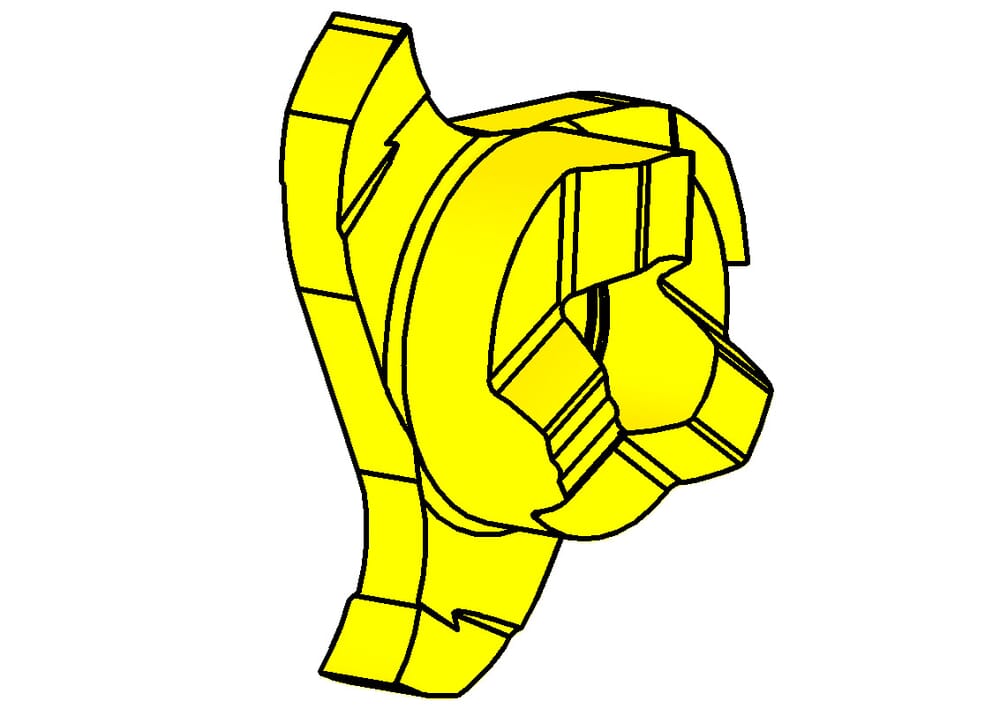

HORN Schneidplatte 306.0110.00 TN35 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
11.7
mm
Zähnezahl (Z)
3
St.
eclass-shortcut
21-18-20-11
ISO_SSC
HORN306060$84R$$$$$
DIN_SSC
HORN-30606084R
Katalog_SSC
306060R
Schneidbreite (w)
1.21
mm
Maximale Frästiefe, Nuttiefe (tmax)
2.5
mm
Nennweite (Nw)
1.1
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.2
mm
Downloads | |
---|---|
306011000_20230112_152517733.STP | Download |
306011000_20210625_140713094.DXF | Download |
Alle Dateien herunterladen |
