306.0130.10.00 TA45
Schneidplatte
Materialnummer 30601301000TA45

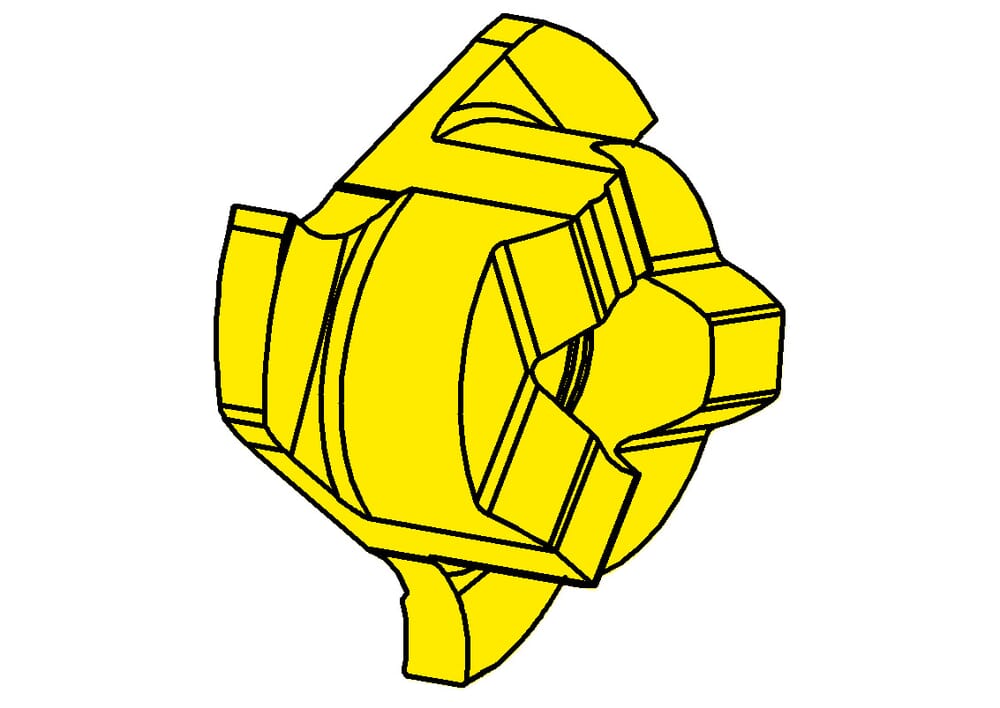

HORN Schneidplatte 306.0130.10.00 TA45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
9.7
mm
Zähnezahl (Z)
3
St.
ISO_SSC
HORN306060$84R$$$$$
Katalog_SSC
306060R
Schneidbreite (w)
1.41
mm
Maximale Frästiefe, Nuttiefe (tmax)
1.5
mm
Nennweite (Nw)
1.3
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
3.2
mm
| Downloads | |
|---|---|
| 306_0130_10_00_TA45-ISO.XML | Download |
| 306_0130_10_00_TA45-DIN.XML | Download |
| 306_0130_10_00_TA45-DXF.DXF | Download |
| 306_0130_10_00_TA45-STP.STP | Download |
| Alle Dateien herunterladen | |
