308.0110.00 TF45
Schneidplatte
Materialnummer 308011000TF45

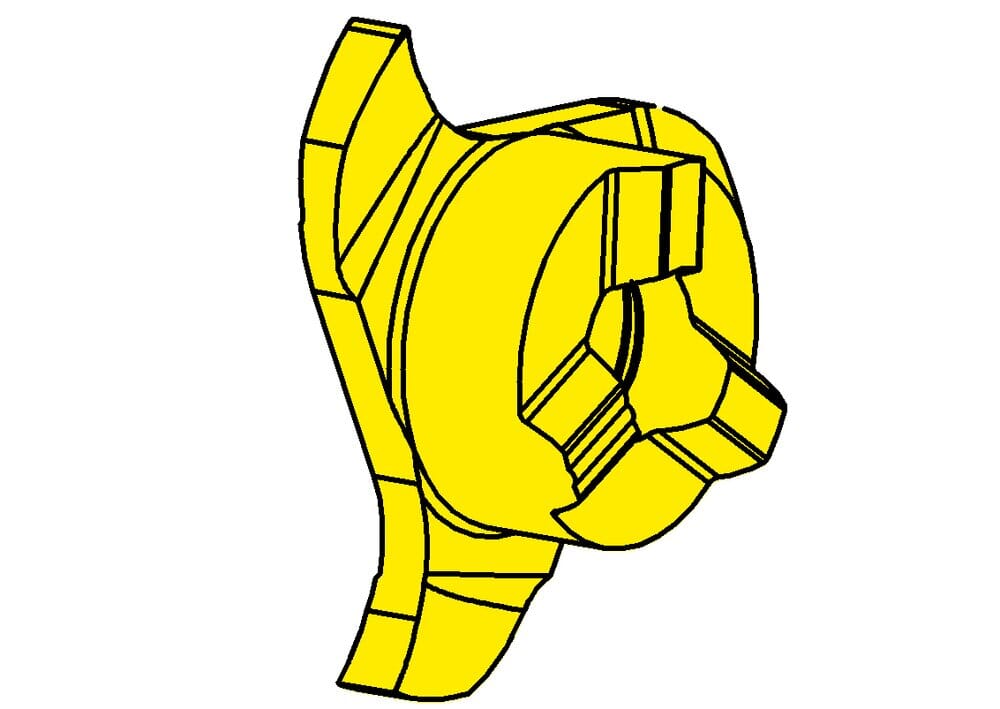

HORN Schneidplatte 308.0110.00 TF45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
15.7
mm
Zähnezahl (Z)
3
St.
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN30808084R
Katalog_SSC
308080R
Schneidbreite (w)
1.21
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Nennweite (Nw)
1.1
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
4.5
mm
| Downloads | |
|---|---|
| 308_0110_00_TF45-DXF.DXF | Download |
| 308_0110_00_TF45-STP.STP | Download |
| 308_0110_00_TF45-DIN.XML | Download |
| Alle Dateien herunterladen | |
