308.0815.01 AS45
Insert
Materialnummer 308081501AS45
HORN Insert 308.0815.01 AS45 for Gewinden
Bitte beachten:Technologieinformationen

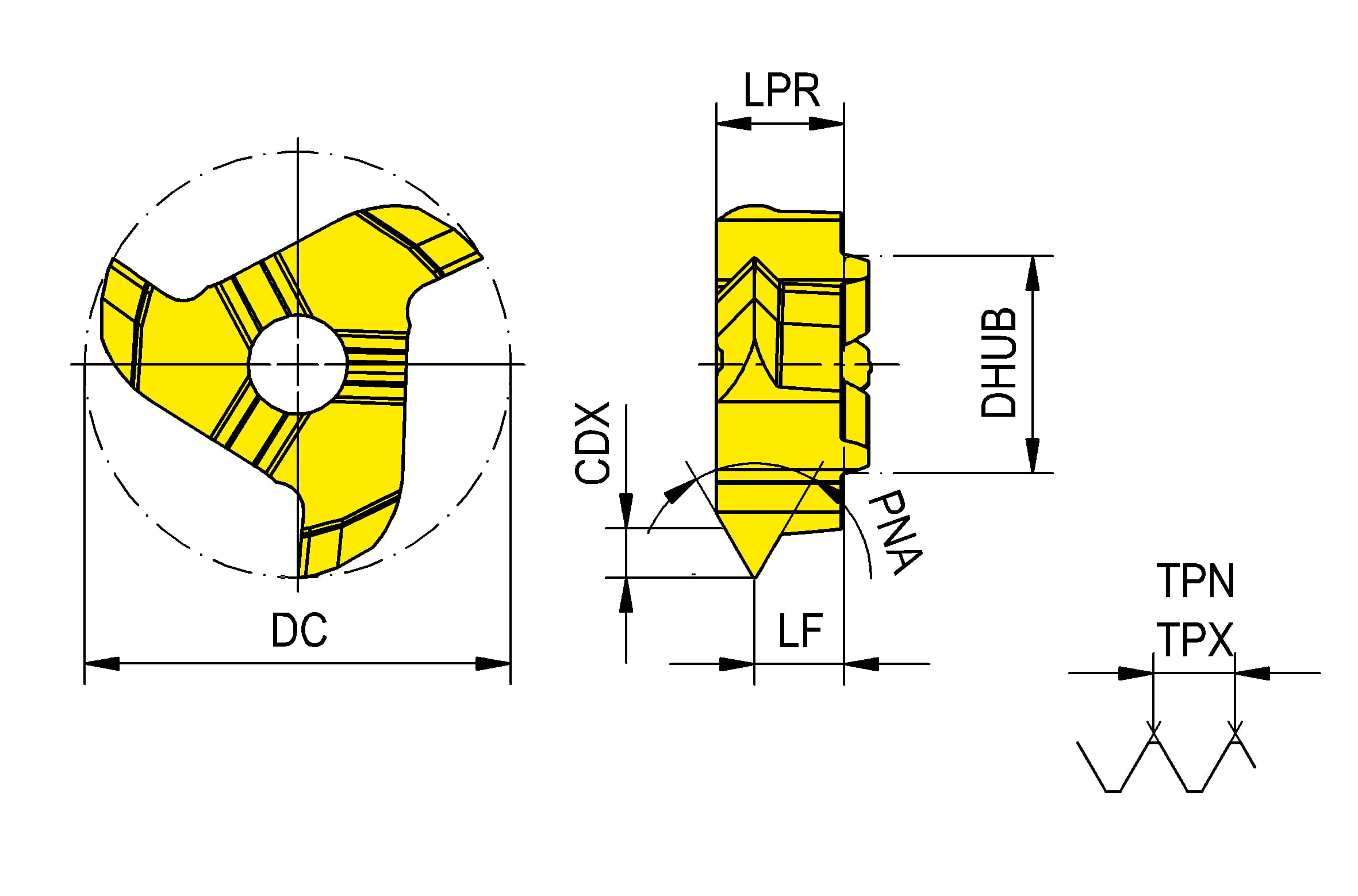

Profile included angle (PNA)
60 °
Thred pitch maximum (TPX)
1.5 mm
Thread pitch minimum (TPN)
1.5 mm
Protruding length (LPR)
4.7 mm
Functional length (LF)
3.7 mm
hub diameter (DHUB)
8 mm
Cutting diameter (DC)
15.7 mm
Cutting depth maximum (CDX)
1 mm
