311.0020.40 AS45
Schneidplatte
Materialnummer 311002040AS45

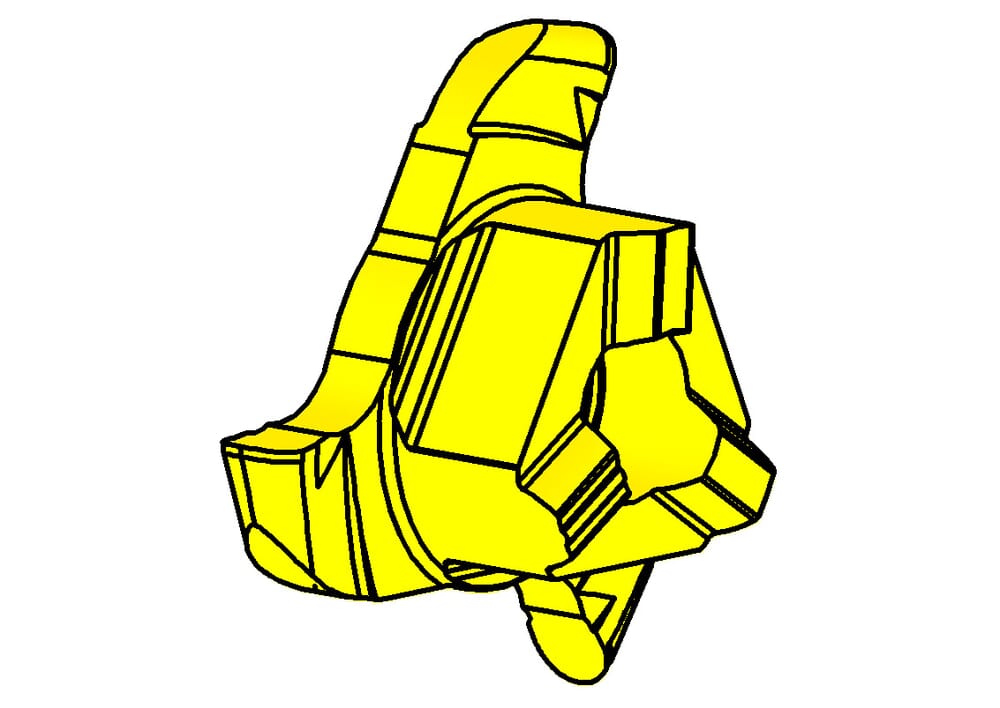

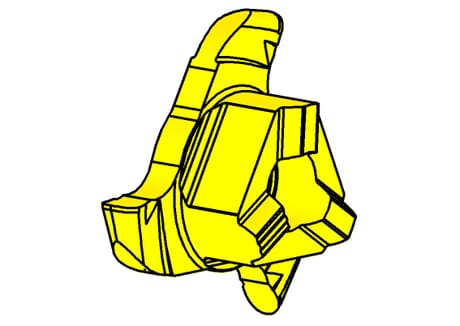

HORN Schneidplatte 311.0020.40 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
17.7
mm
Zähnezahl (Z)
3
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN31109084R
Katalog_SSC
311090R
Schneidbreite (w)
4
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
5.75
mm
Radius, Vollradius (r)
2
mm
| Downloads | |
|---|---|
| 311_0020_40_AS45-DXF.DXF | Download |
| 311_0020_40_AS45-STP.STP | Download |
| 311_0020_40_AS45-DIN.XML | Download |
| Alle Dateien herunterladen | |
