312.0020.40 P20
Inserts
Materialnummer 312002040P20
HORN Inserts 312.0020.40 P20 for Turning
Bitte beachten:Technologieinformationen

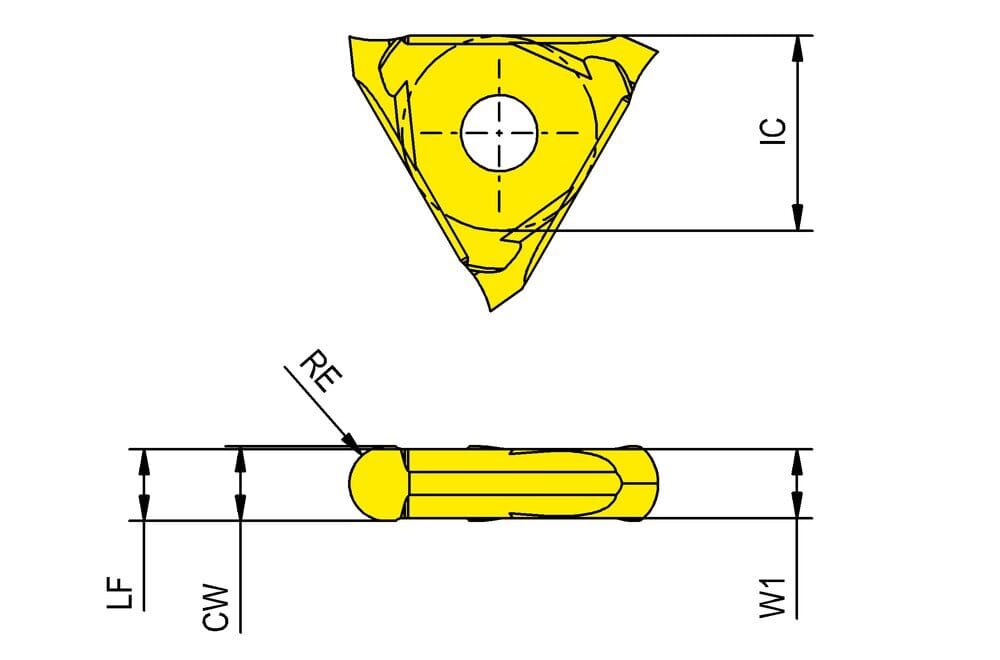

inscribed circle diameter (IC)
13 mm
insert width (W1)
3.6 mm
corner radius (RE)
2 mm
Functional length (LF)
3.8 mm
Cutting width (CW)
4 mm
Cutting depth maximum (CDX)
2.8 mm
| Downloads | |
|---|---|
| 312_0020_40_P20-DXF.DXF | Download |
| 312_0020_40_P20-ISO.XML | Download |
| 312_0020_40_P20-DIN.XML | Download |
| 312_0020_40_P20-STP.STP | Download |
| Alle Dateien herunterladen | |
