608.0720.01 AS45
Schneidplatte
Materialnummer 608072001AS45

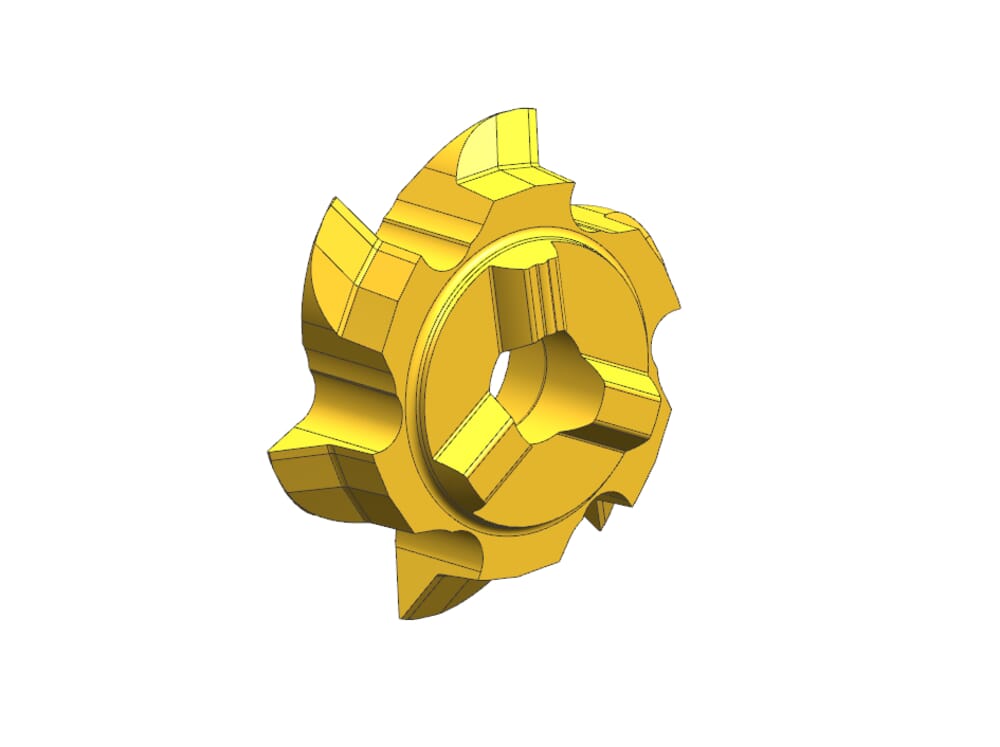

HORN Schneidplatte 608.0720.01 AS45 zum Gewinden
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
15.7
mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN308080$84R$$$$$
DIN_SSC
HORN-30808084R
Katalog_SSC
308080R
Einstellmaß Länge (E)
3.3
mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.55
mm
Steigung (P)
1
mm
maximale Steigung (Pmax)
2
mm
Downloads | |
---|---|
608072001_20230112_150627352.STP | Download |
608072001_20210627_113545757.DXF | Download |
Alle Dateien herunterladen |
