611.0130.00 AS45
Schneidplatte
Materialnummer 611013000AS45

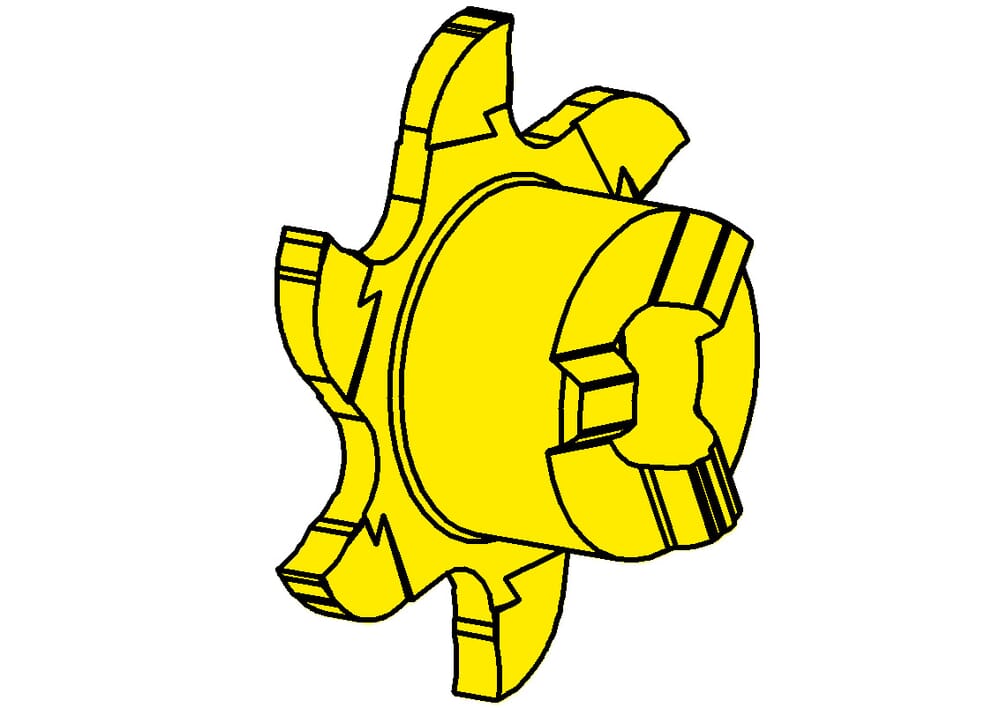

HORN Schneidplatte 611.0130.00 AS45 zum Fräsen
Bitte beachten:Technologieinformationen
Schneidkreisdurchmesser (Ds)
17.7
mm
Zähnezahl (Z)
6
St.
ISO_SSC
HORN311090$84R$$$$$
DIN_SSC
HORN-31109084R
Katalog_SSC
311090R
Schneidbreite (w)
1.41
mm
Maximale Frästiefe, Nuttiefe (tmax)
3.5
mm
Nennweite (Nw)
1.3
mm
Schneidplattendicke, Einstellmaß Länge komplett (s)
6.1
mm
| Downloads | |
|---|---|
| 611_0130_00_AS45-DXF.DXF | Download |
| 611_0130_00_AS45-STP.STP | Download |
| 611_0130_00_AS45-DIN.XML | Download |
| Alle Dateien herunterladen | |
