L105.0810.5.5 TN35
Insert
Materialnummer L105081055TN35
HORN Insert L105.0810.5.5 TN35 for Turning
Bitte beachten:Technologieinformationen

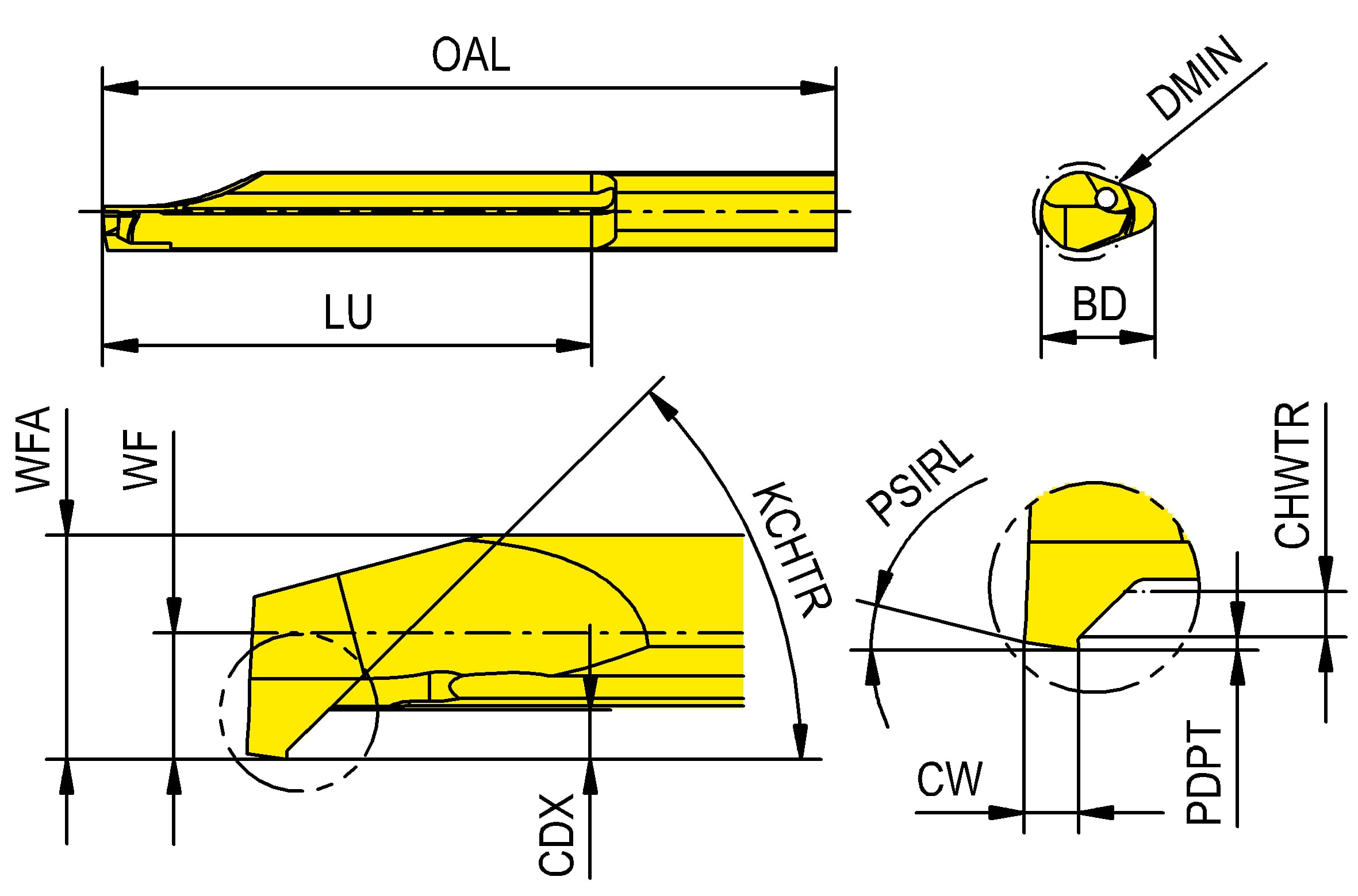

Funktional width (WF)
2.3 mm
Body diameter (BD)
7 mm
Cutting depth maximum (CDX)
0.7 mm
Cutting width (CW)
1 mm
Minimum bore diameter (DMIN)
5 mm
Usable length (LU)
30 mm
Overall length (OAL)
45 mm
profile depth insert (PDPT)
0.2 mm
Cutting edge angle major left hand (PSIRL)
8 °
Flank chamfer width, right (CHWTR)
0.5 mm
Dimension a at working width (WFA)
4.7 mm
Flank chamfer angle right hand (KCHTR)
45 °
Cutting edge count (CEDC)
1
| Downloads | |
|---|---|
| L105_0810_5_5_TN35-DXF.DXF | Download |
| L105_0810_5_5_TN35-STP.STP | Download |
| L105_0810_5_5_TN35-ISO.XML | Download |
| L105_0810_5_5_TN35-DIN.XML | Download |
| Alle Dateien herunterladen | |
