L105.0810.5.6 EG35
Schneidplatte
Materialnummer L105081056EG35

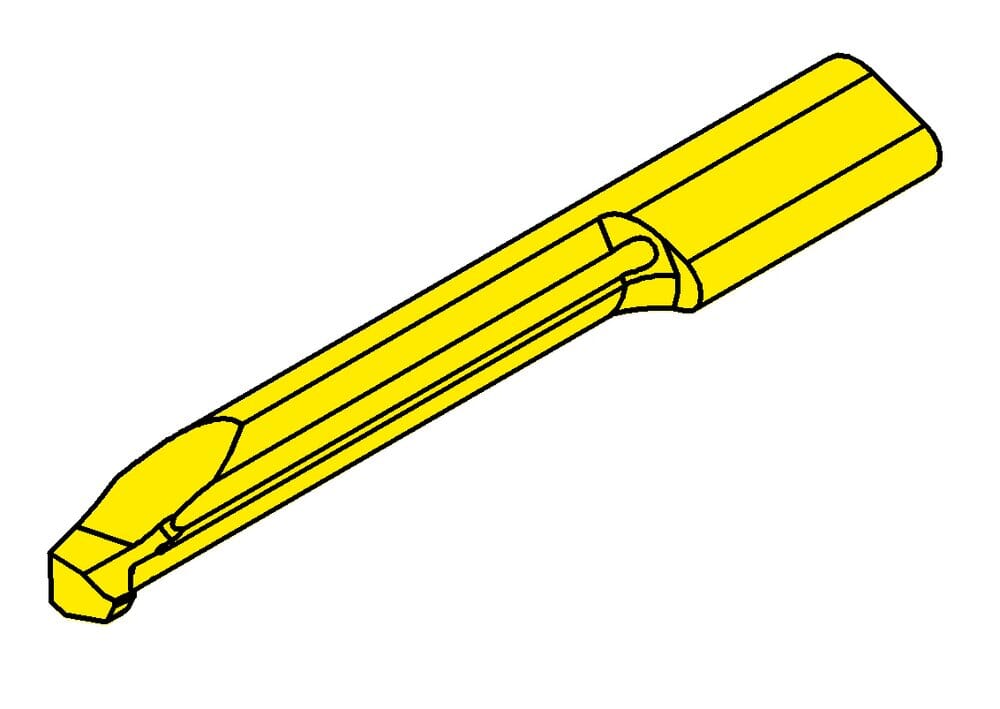

HORN Schneidplatte L105.0810.5.6 EG35 zum Drehen
Bitte beachten:Technologieinformationen
Katalog_SSC
105125
Kleinster Bohrungsdurchmesser (Dmin)
6 mm
Gesamtlänge (l5)
45 mm
Einstellmaß radial (f)
3.1 mm
Halsdurchmesser (d)
4.2 mm
Schneidbreite (w)
1 mm
Halslänge (l2)
30 mm
ISO_SSC
HORN105125$95N$$$$$
Vorstechtiefe bis Fase (t1)
0.2 mm
Rohlingsbreite (b)
7 mm
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
1 mm
Kopfmaß (a)
5.5 mm
| Downloads | |
|---|---|
| L105_0810_5_6_EG35-DXF.DXF | Download |
| L105_0810_5_6_EG35-STP.STP | Download |
| L105_0810_5_6_EG35-ISO.XML | Download |
| L105_0810_5_6_EG35-DIN.XML | Download |
| Alle Dateien herunterladen | |
