L105.1019.4.4 TH35
Schneidplatte
Materialnummer L105101944TH35

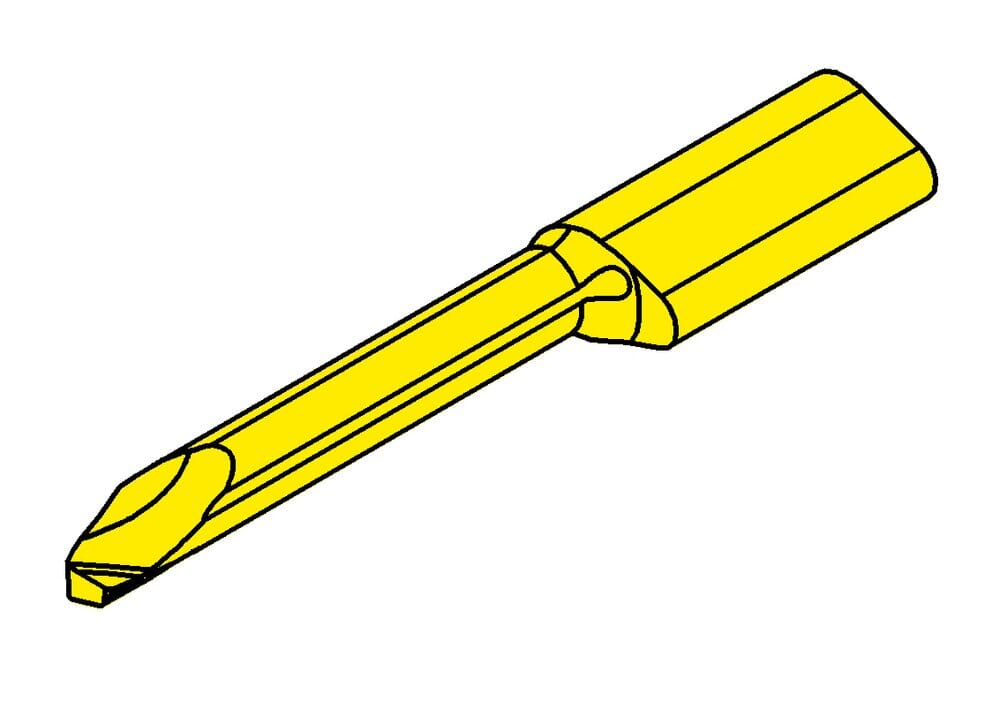

HORN Schneidplatte L105.1019.4.4 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Katalog_SSC
105125
Kleinster Bohrungsdurchmesser (Dmin)
4 mm
Gesamtlänge (l5)
40 mm
Einstellmaß radial (f)
1.5 mm
Halsdurchmesser (d)
3.4 mm
Halslänge (l2)
25 mm
ISO_SSC
HORN105125$95N$$$$$
Rohlingsbreite (b)
7 mm
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
0.15 mm
Kopfmaß (a)
3.7 mm
Spitzenradius (r)
0.2 mm
| Downloads | |
|---|---|
| L105_1019_4_4_TH35-DXF.DXF | Download |
| L105_1019_4_4_TH35-STP.STP | Download |
| L105_1019_4_4_TH35-ISO.XML | Download |
| L105_1019_4_4_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
