L105.1023.005.2.5 TH35
Insert
Materialnummer L105102300525TH35
HORN Insert L105.1023.005.2.5 TH35 for Turning
Bitte beachten:Technologieinformationen
Cutting edge count (CEDC)
1

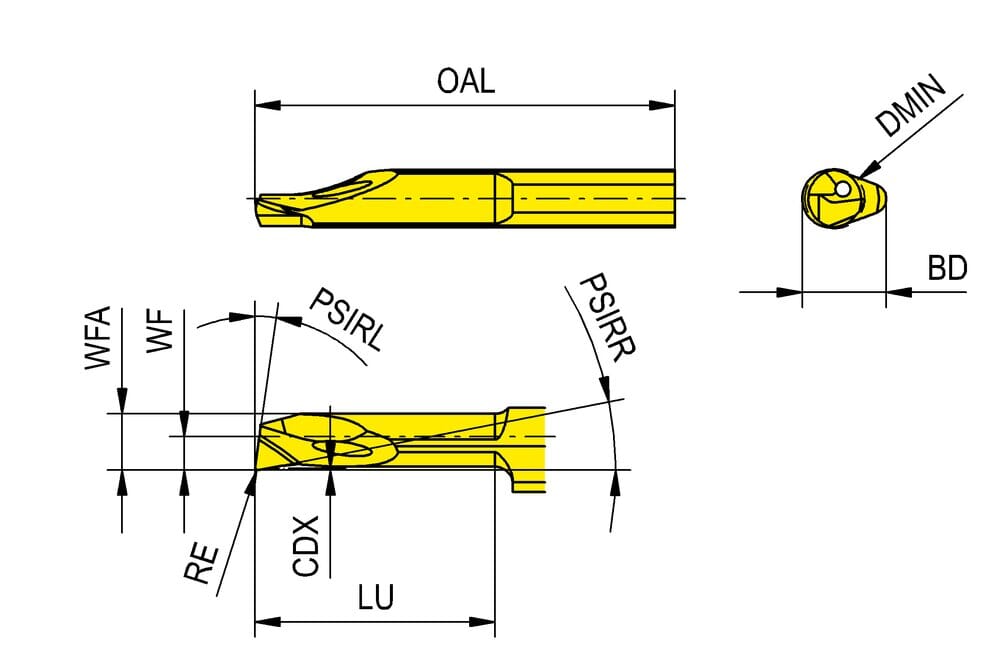

Dimension a at working width (WFA)
4.7 mm
Funktional width (WF)
2.8 mm
corner radius (RE)
0.05 mm
Cutting edge angle major right hand (PSIRR)
11 °
Cutting edge angle major left hand (PSIRL)
8 °
Overall length (OAL)
30 mm
Usable length (LU)
15 mm
Minimum bore diameter (DMIN)
5 mm
Cutting depth maximum (CDX)
0.15 mm
Body diameter (BD)
7 mm
| Downloads | |
|---|---|
| L105_1023_005_2_5_TH35-DXF.DXF | Download |
| L105_1023_005_2_5_TH35-STP.STP | Download |
| L105_1023_005_2_5_TH35-ISO.XML | Download |
| L105_1023_005_2_5_TH35-DIN.XML | Download |
| Alle Dateien herunterladen | |
