L107.0100.2.00 EG55
Schneidplatte
Materialnummer L1070100200EG55

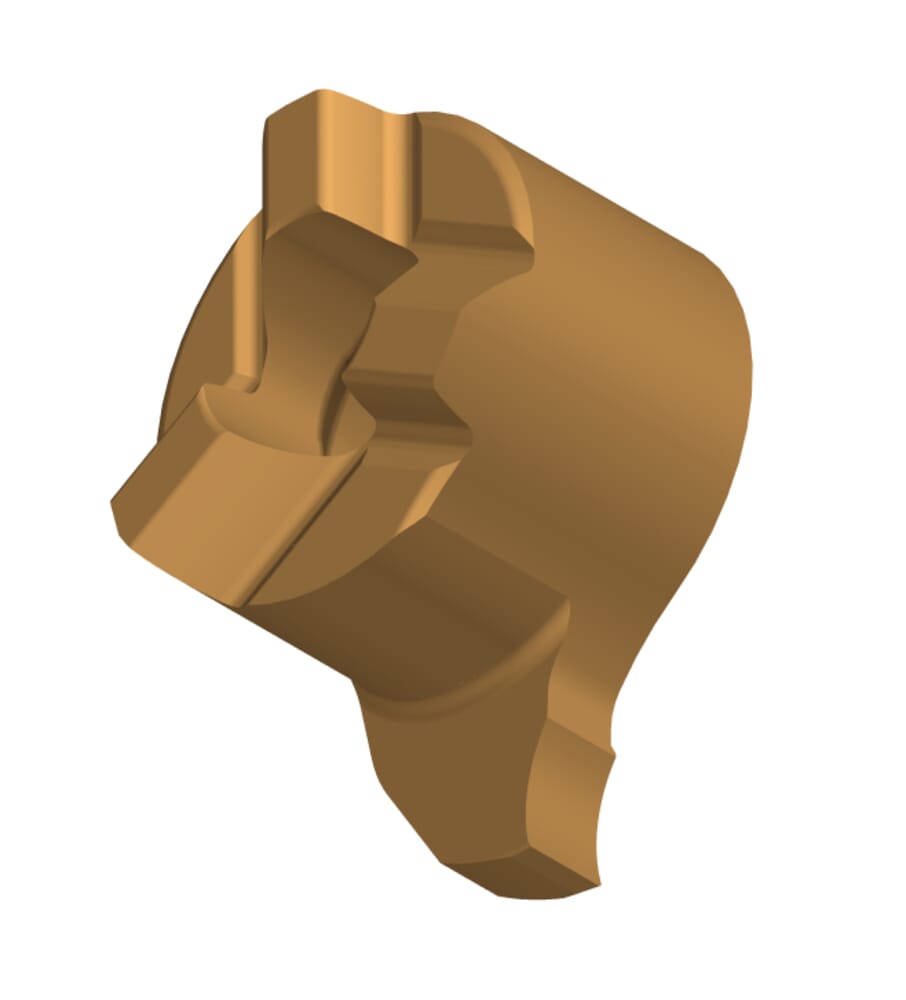

HORN Schneidplatte L107.0100.2.00 EG55 zum Drehen
Bitte beachten:Technologieinformationen
Kopfmaß (a)
7.6 mm
Maximale Stechtiefe (tmax)
2 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN107052$84L$$$$$
Katalog_SSC
107052L
Schneidbreite (w)
1 mm
Einstellmaß radial (f)
5 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
5.2 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.3 mm
Kleinster Bohrungsdurchmesser (Dmin)
8 mm
| Downloads | |
|---|---|
| L107_0100_2_00_EG55-DXF.DXF | Download |
| L107_0100_2_00_EG55-STP.STP | Download |
| L107_0100_2_00_EG55-ISO.XML | Download |
| L107_0100_2_00_EG55-DIN.XML | Download |
| Alle Dateien herunterladen | |
