L107.0150.1.00 EG55
Schneidplatte
Materialnummer L1070150100EG55

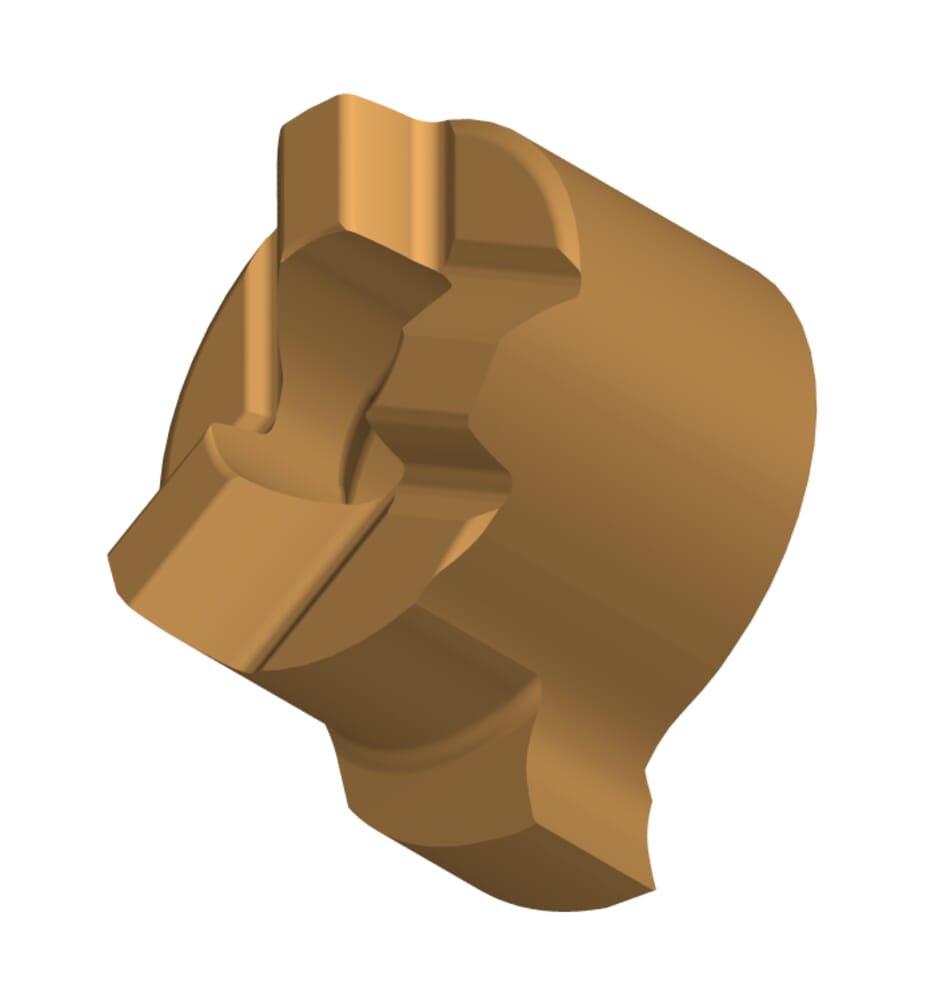

HORN Schneidplatte L107.0150.1.00 EG55 zum Drehen
Bitte beachten:Technologieinformationen
Kopfmaß (a)
6.6 mm
Maximale Stechtiefe (tmax)
1 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN107052$84L$$$$$
Katalog_SSC
107052L
Schneidbreite (w)
1.5 mm
Einstellmaß radial (f)
4 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
5.2 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.3 mm
Kleinster Bohrungsdurchmesser (Dmin)
7 mm
| Downloads | |
|---|---|
| L107_0150_1_00_EG55-DXF.DXF | Download |
| L107_0150_1_00_EG55-STP.STP | Download |
| L107_0150_1_00_EG55-ISO.XML | Download |
| L107_0150_1_00_EG55-DIN.XML | Download |
| Alle Dateien herunterladen | |
