L107.0205.1.01 TH35
Schneidplatte
Materialnummer L1070205101TH35

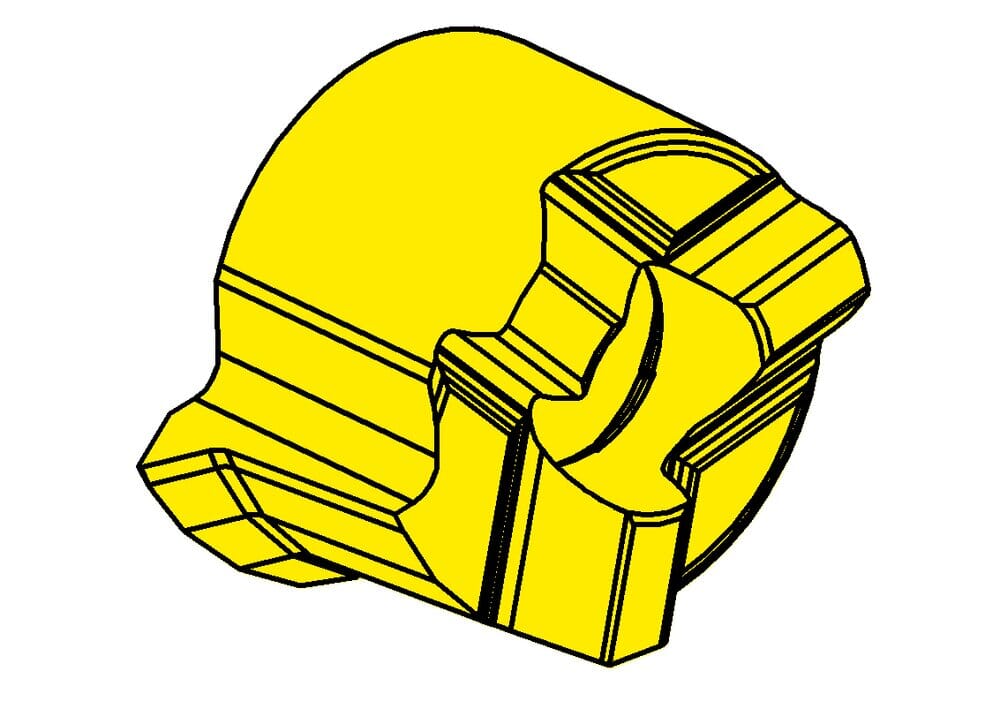

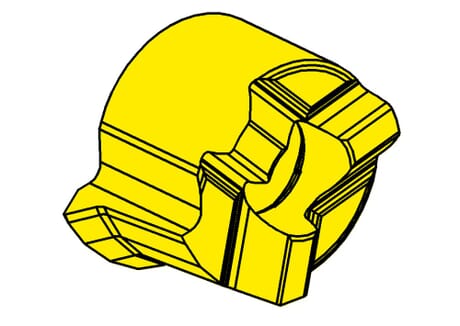

HORN Schneidplatte L107.0205.1.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen
Einstellmaß Länge (E)
3 mm
maximale Steigung (Pmax)
0.75 mm
Steigung (P)
0.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
7 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.5 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
5.2 mm
Schneidplattenbreite (a)
6.6 mm
Einstellmaß radial (f)
4 mm
Katalog_SSC
107052L
ISO_SSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
