L107.0205.1.01 EG55
Schneidplatte
Materialnummer L1070205101EG55
HORN Schneidplatte L107.0205.1.01 EG55 zum Gewinden
Bitte beachten:Technologieinformationen

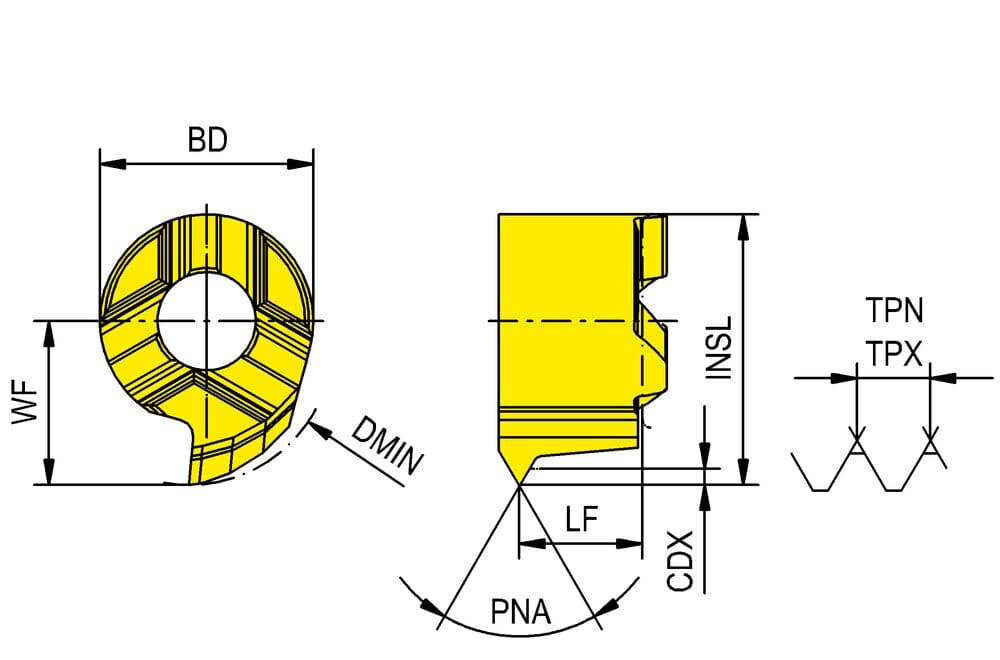

Schneidplattenhöhe, Schneidplattendicke (s)
3.5 mm
thread-per-inch-max
50
thread-per-inch-min
33
maximale Steigung (Pmax)
0.75 mm
Steigung (P)
0.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
7 mm
Einstellmaß Länge (E)
3 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
5.2 mm
Schneidplattenbreite (a)
6.6 mm
Einstellmaß radial (f)
4 mm
Katalog_SSC
107052L
ISOSSC
HORN107052$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L107_0205_1_01_EG55-DXF.DXF | Download |
| L107_0205_1_01_EG55-STP.STP | Download |
| L107_0205_1_01_EG55-ISO.XML | Download |
| L107_0205_1_01_EG55-DIN.XML | Download |
| Alle Dateien herunterladen | |
