L10P.0005.2.10 EG55
Schneidplatte
Materialnummer L10P0005210EG55

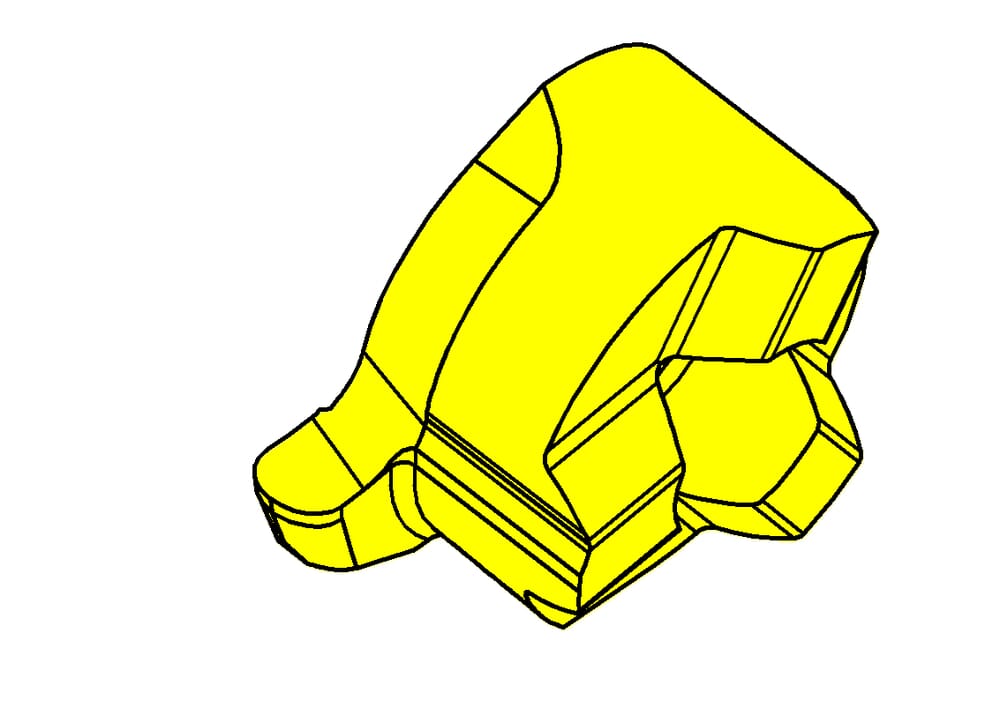

HORN Schneidplatte L10P.0005.2.10 EG55 zum Drehen
Bitte beachten:Technologieinformationen
Kopfmaß (a)
9.5 mm
Maximale Stechtiefe (tmax)
3 mm
Vollradius (r)
0.5 mm
ISO_SSC
HORN10P060$84L$$$$$
Katalog_SSC
10P060L
Schneidbreite (w)
1 mm
Einstellmaß radial (f)
6.5 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
6 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.6 mm
Kleinster Bohrungsdurchmesser (Dmin)
10 mm
| Downloads | |
|---|---|
| L10P_0005_2_10_EG55-DXF.DXF | Download |
| L10P_0005_2_10_EG55-STP.STP | Download |
| L10P_0005_2_10_EG55-ISO.XML | Download |
| L10P_0005_2_10_EG55-DIN.XML | Download |
| Alle Dateien herunterladen | |
