L10P.3065.2.02 EG55
Schneidplatte
Materialnummer L10P3065202EG55

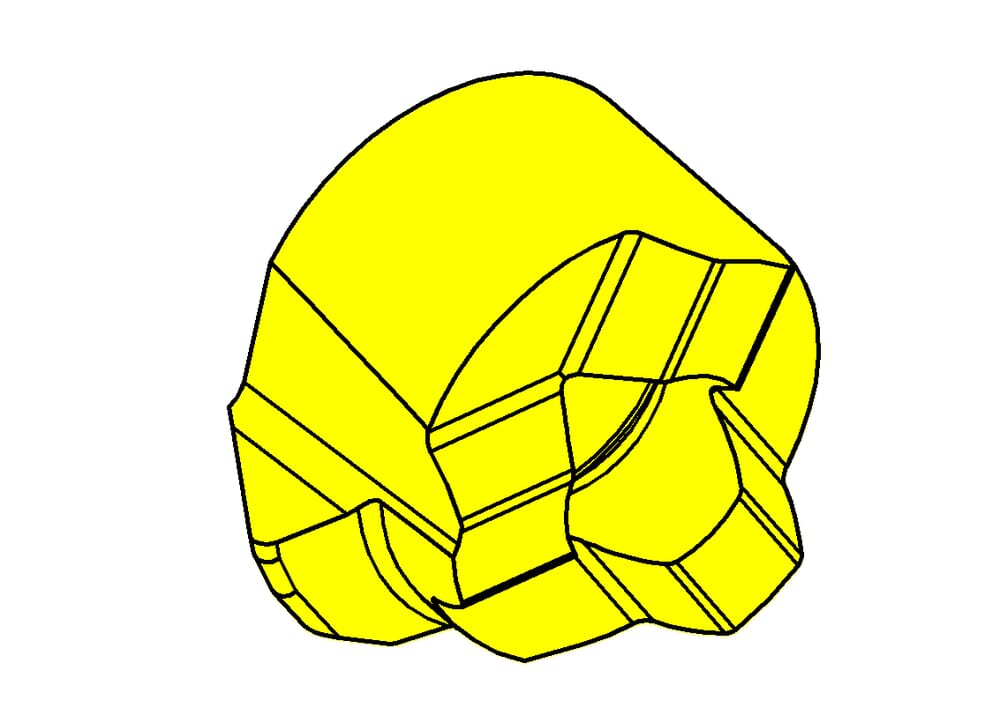

HORN Schneidplatte L10P.3065.2.02 EG55 zum Drehen
Bitte beachten:Technologieinformationen

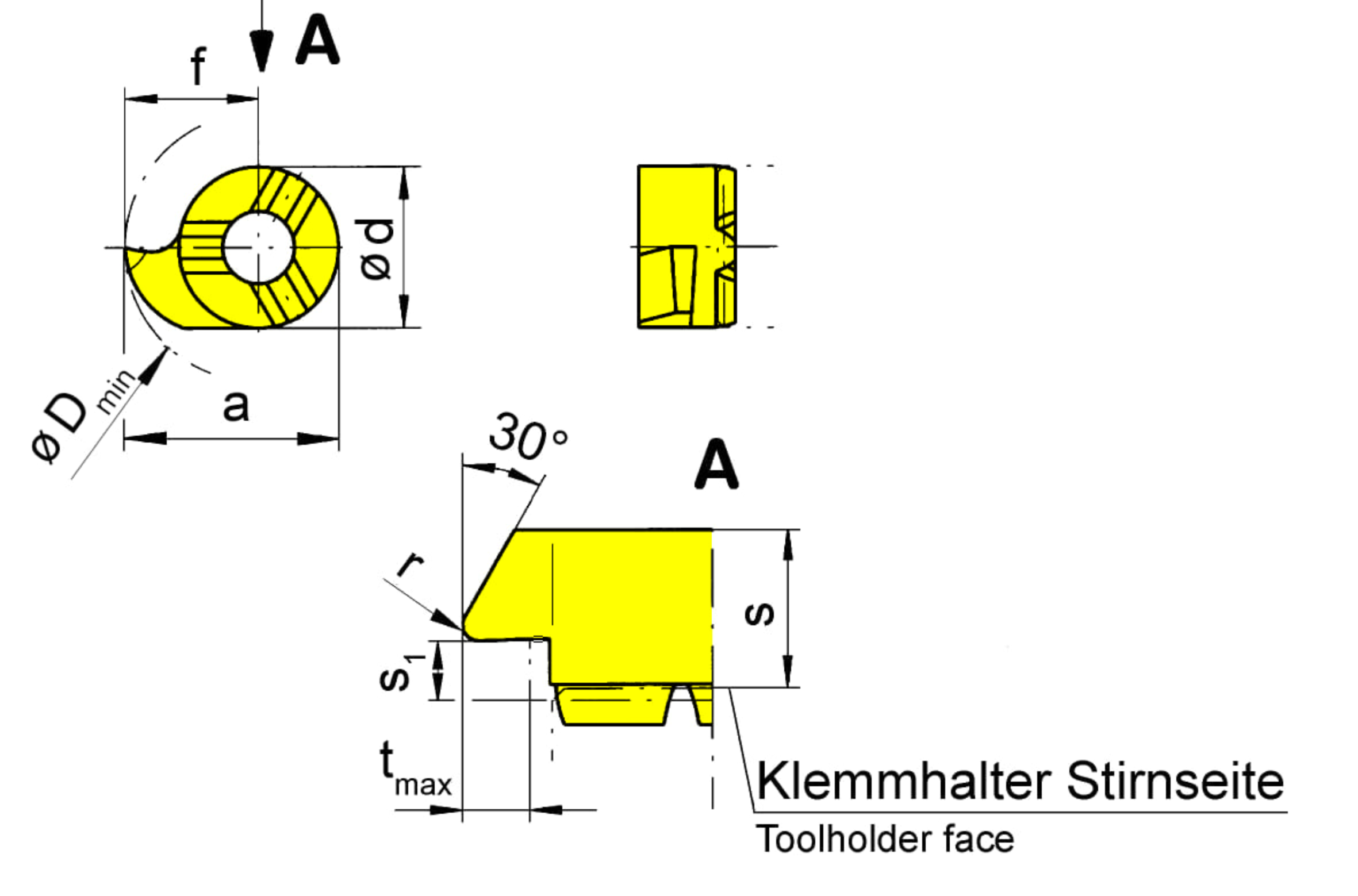

Spitzenradius (r)
0.2
mm
Kopfmaß (a)
9.5
mm
Maximale Stechtiefe (tmax)
3
mm
Maß Schneidplatte zur Stirnseite Halter (s1)
1
mm
ISO_SSC
HORN10P060$84L$$$$$
DIN_SSC
HORN-10P06084L
Katalog_SSC
10P060L
Einstellmaß radial (f)
6.5
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
6
mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.75
mm
Kleinster Bohrungsdurchmesser (Dmin)
10
mm
