L110.2129.9.6 EG35
Schneidplatte
Materialnummer L110212996EG35

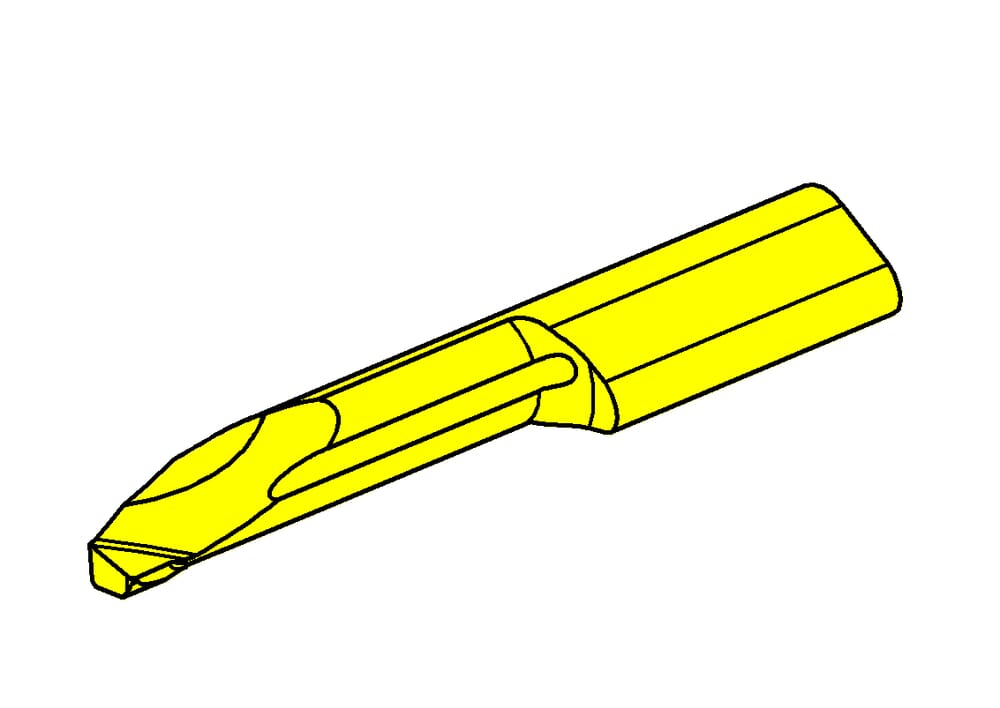

HORN Schneidplatte L110.2129.9.6 EG35 zum Drehen
Bitte beachten:Technologieinformationen
Katalog_SSC
110260

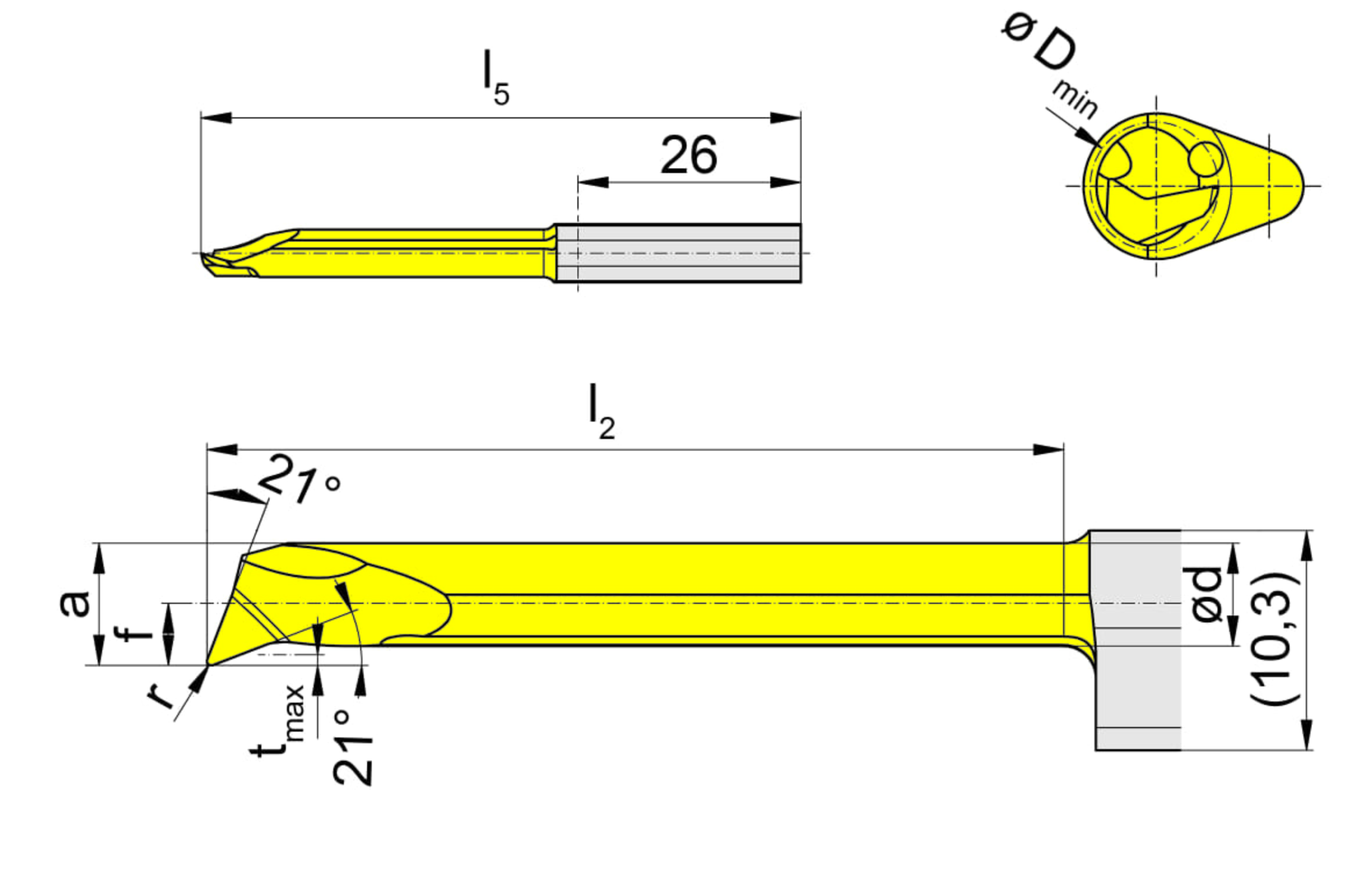

Kleinster Bohrungsdurchmesser (Dmin)
6 mm
Gesamtlänge (l5)
80 mm
Einstellmaß radial (f)
2.9 mm
Halsdurchmesser (d)
4.8 mm
Halslänge (l2)
50 mm
ISO_SSC
HORN110260$95N$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
0.5 mm
Kopfmaß (a)
5.7 mm
Spitzenradius (r)
0.2 mm
| Downloads | |
|---|---|
| L110_2129_9_6_EG35-ISO.XML | Download |
| L110_2129_9_6_EG35-DIN.XML | Download |
| L110_2129_9_6_EG35-DXF.DXF | Download |
| L110_2129_9_6_EG35-STP.STP | Download |
| Alle Dateien herunterladen | |
