L111.1020.02 EG55
Schneidplatte
Materialnummer L111102002EG55

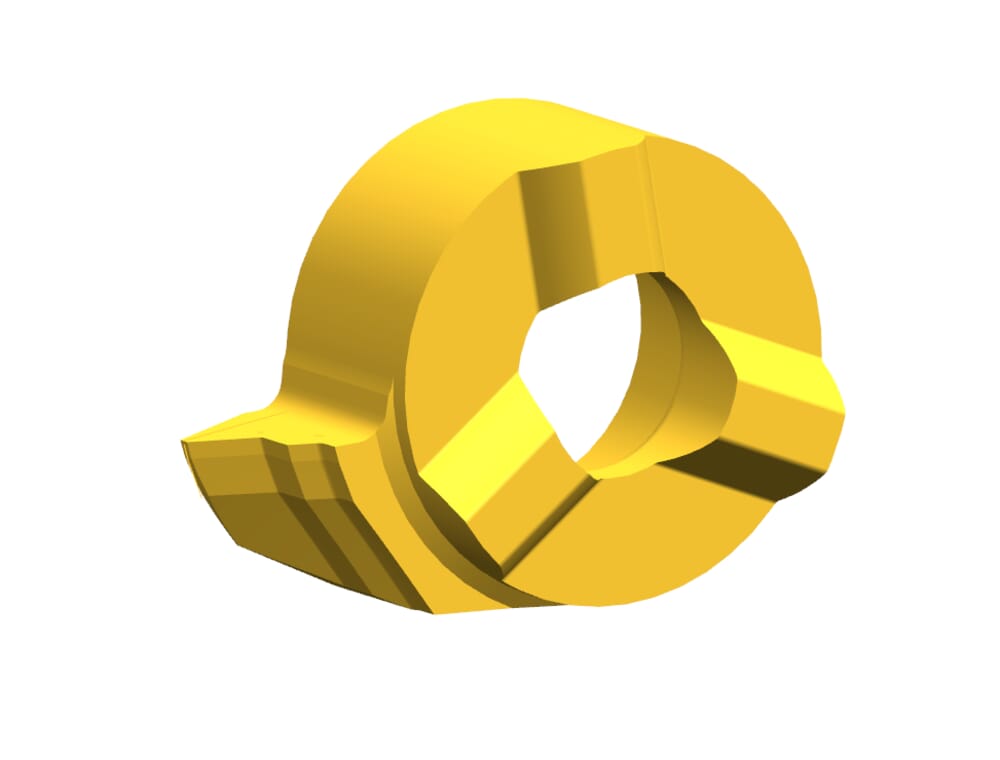

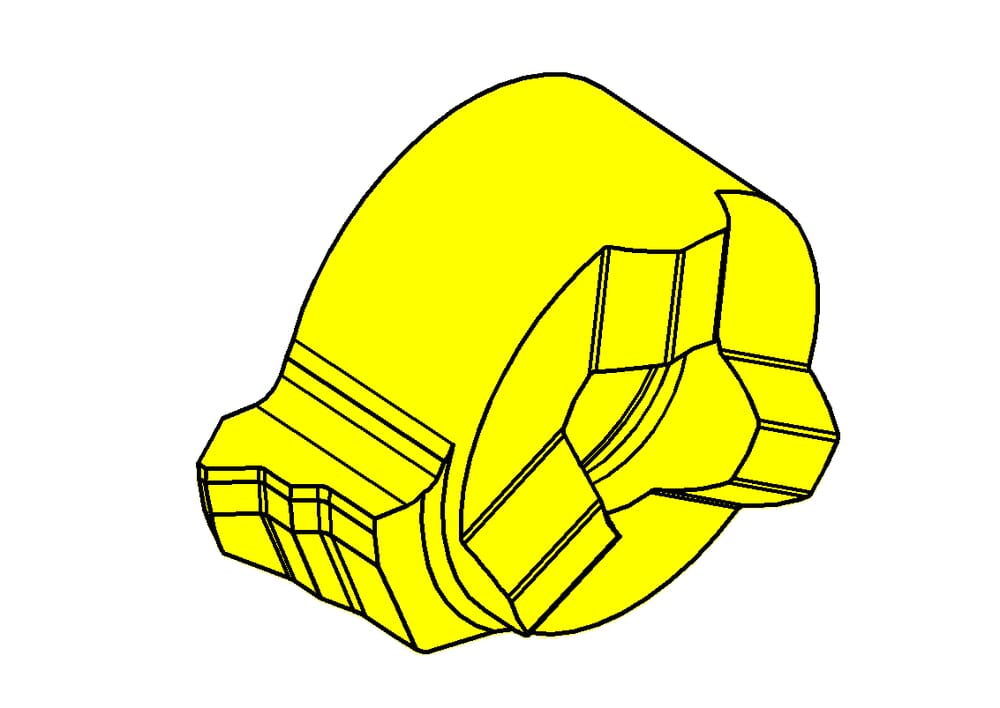

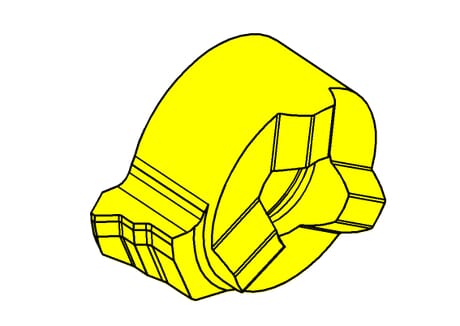

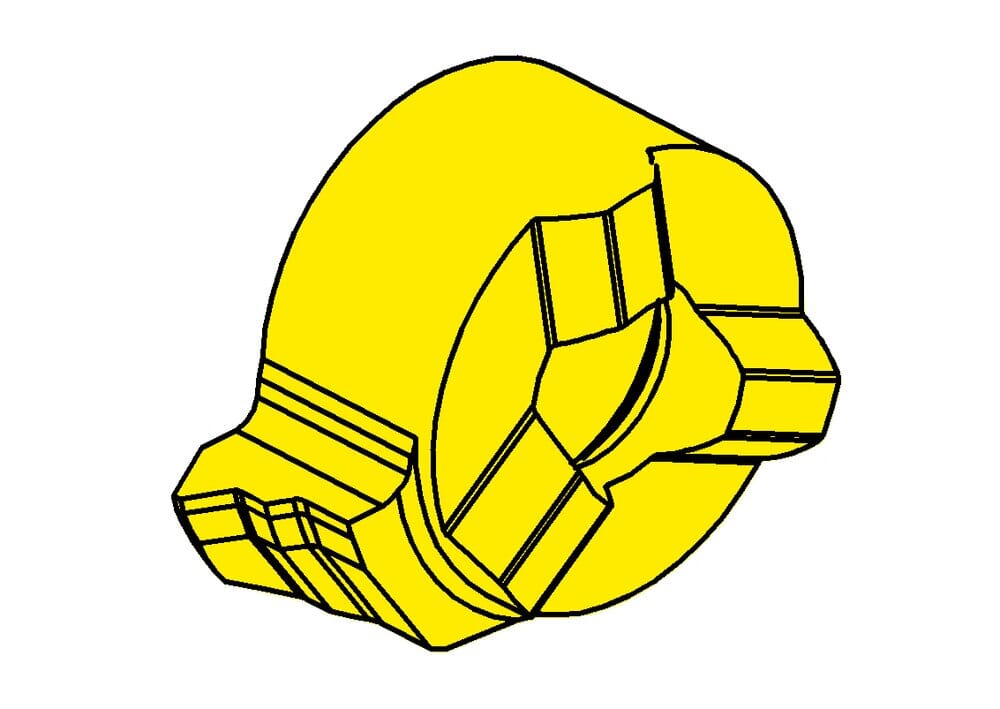

HORN Schneidplatte L111.1020.02 EG55 zum Gewinden
Bitte beachten:Technologieinformationen

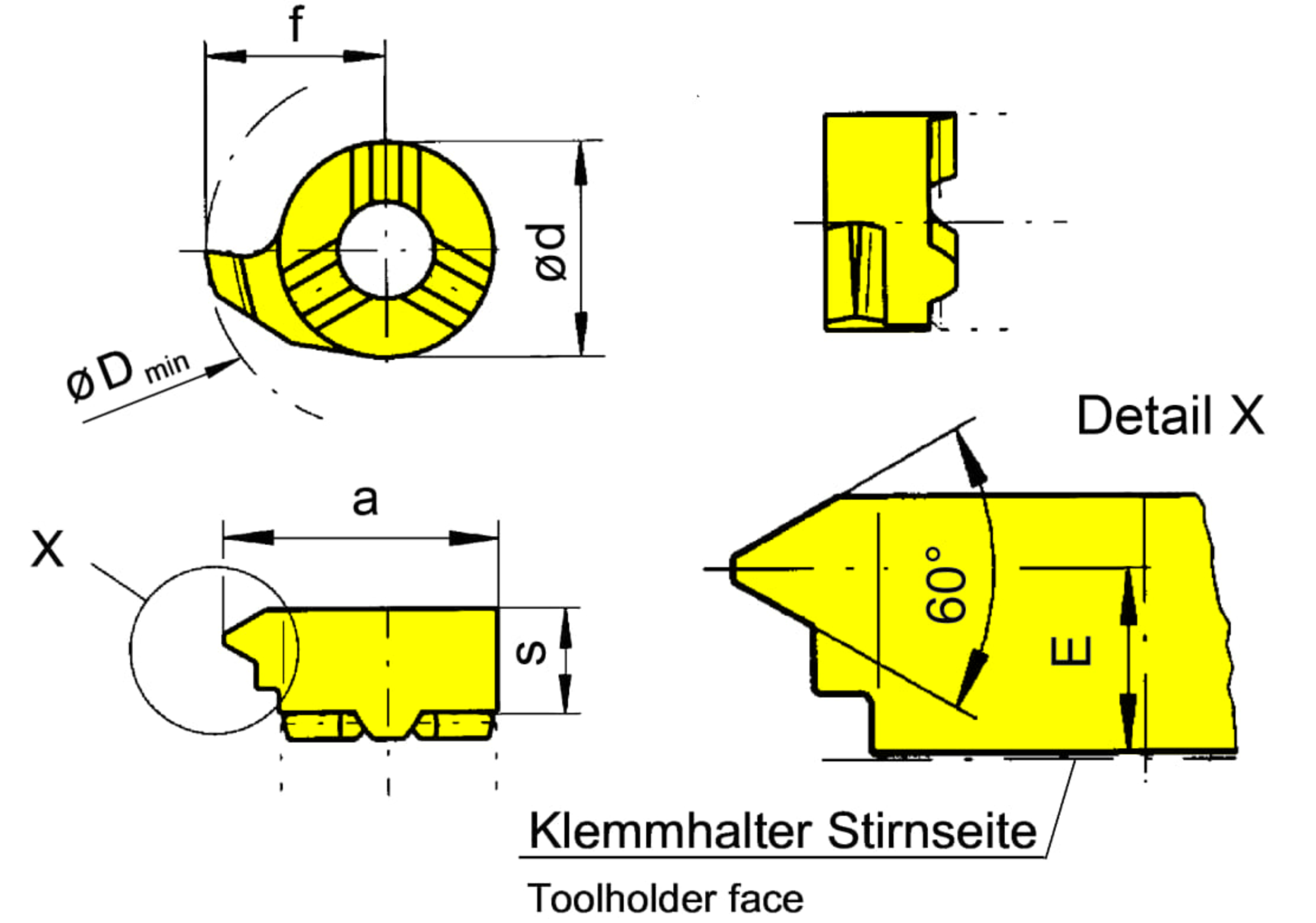

Verzahnungsdurchmesser, Kopfdurchmesser (d)
8 mm
Steigung (P)
2 mm
Kleinster Bohrungsdurchmesser (Dmin)
11 mm
Schneidplattenhöhe, Schneidplattendicke (s)
4.15 mm
Einstellmaß Länge (E)
3 mm
number-of-teeth
1 St.
Schneidplattenbreite (a)
10.7 mm
Einstellmaß radial (f)
6.7 mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
