L111.FB15.01 EG35
Schneidplatte
Materialnummer L111FB1501EG35

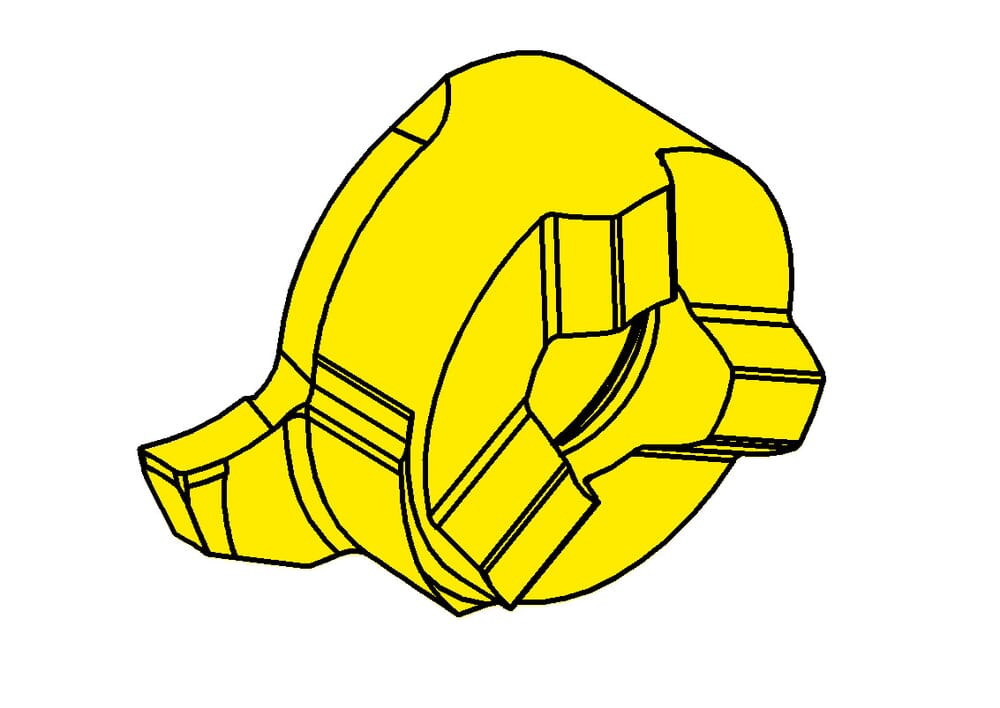

HORN Schneidplatte L111.FB15.01 EG35 zum Drehen
Bitte beachten:Technologieinformationen
Einstellmaß radial (f)
6.7 mm
Kleinster Bohrungsdurchmesser (Dmin)
11 mm
Schneidplattenhöhe, Schneidplattendicke (s)
3.95 mm
Eckenradius (r)
0.1 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
8 mm
Kopfmaß (a)
10.7 mm
Schneidbreite (w)
1.5 mm
Katalog_SSC
111080L
ISO_SSC
HORN111080$84L$$$$$
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
2.3 mm
