L114.0510.01 TN35
Schneidplatte
Materialnummer L114051001TN35

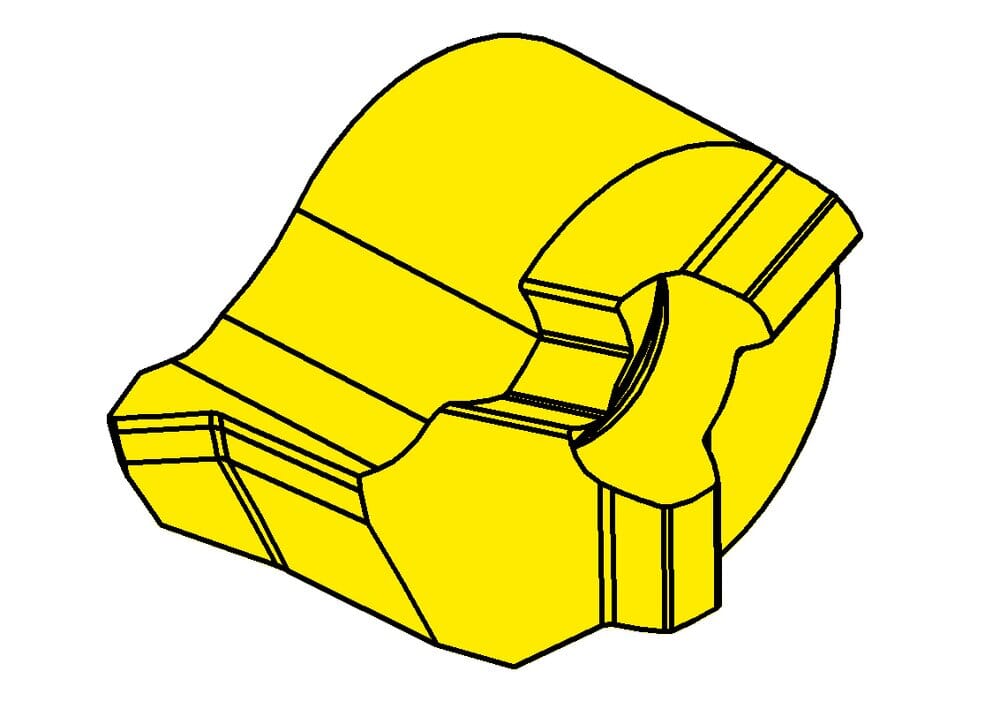

HORN Schneidplatte L114.0510.01 TN35 zum Gewinden
Bitte beachten:Technologieinformationen
DIN_SSC
HORN-11409084L
maximale Steigung (Pmax)
1.25
mm
Steigung (P)
1
mm
Kleinster Bohrungsdurchmesser (Dmin)
14
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5
mm
Einstellmaß Länge (E)
4.7
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
9
mm
Schneidplattenbreite (a)
13.5
mm
Einstellmaß radial (f)
9
mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
