L114.1020.02 EG55
Schneidplatte
Materialnummer L114102002EG55

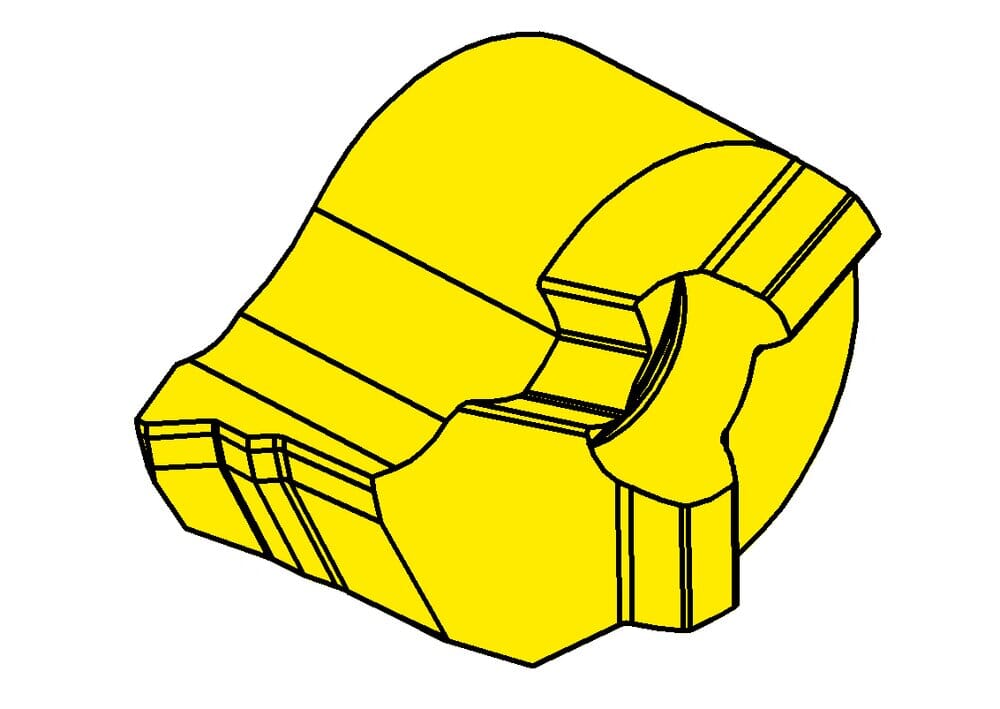

HORN Schneidplatte L114.1020.02 EG55 zum Gewinden
Bitte beachten:Technologieinformationen
Verzahnungsdurchmesser, Kopfdurchmesser (d)
9 mm
Steigung (P)
2 mm
Kleinster Bohrungsdurchmesser (Dmin)
14 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5 mm
Einstellmaß Länge (E)
4.2 mm
number-of-teeth
1 St.
Schneidplattenbreite (a)
13.5 mm
Einstellmaß radial (f)
9 mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
