L114.1325.01 TH35
Schneidplatte
Materialnummer L114132501TH35

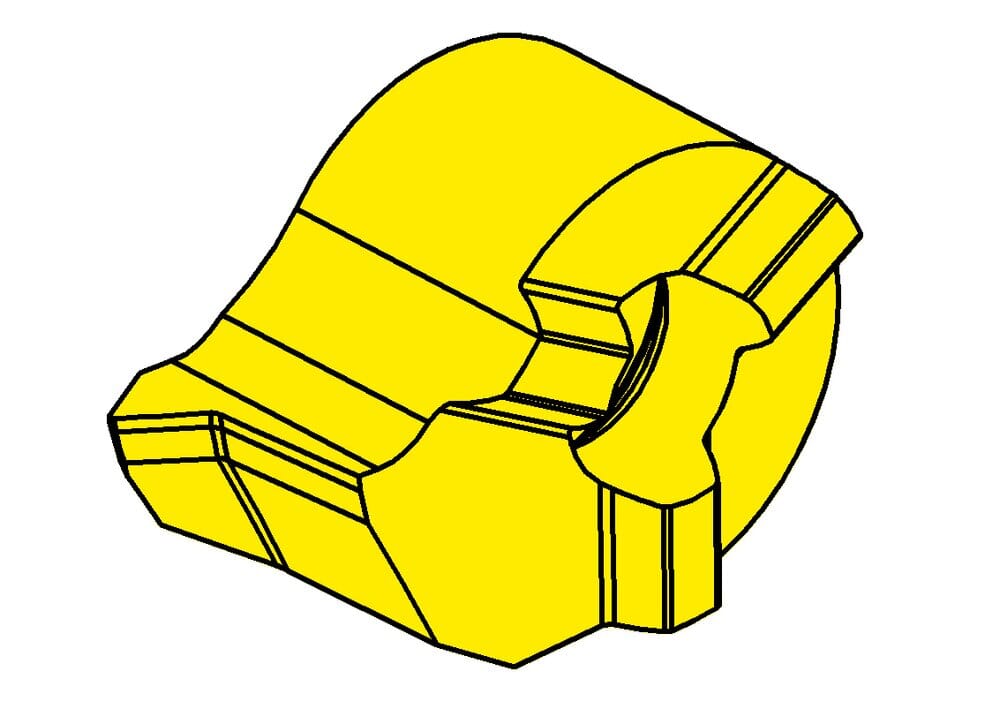

HORN Schneidplatte L114.1325.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen
Einstellmaß Länge (E)
4.2 mm
maximale Steigung (Pmax)
2.5 mm
Steigung (P)
2.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
14 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5 mm
number-of-teeth
1 St.
Verzahnungsdurchmesser, Kopfdurchmesser (d)
9 mm
Schneidplattenbreite (a)
13.5 mm
Einstellmaß radial (f)
9 mm
Katalog_SSC
114090L
ISO_SSC
HORN114090$84L$$$$$
eclass-shortcut
21-18-20-11
