L114.4710.02 EG55
Schneidplatte
Materialnummer L114471002EG55

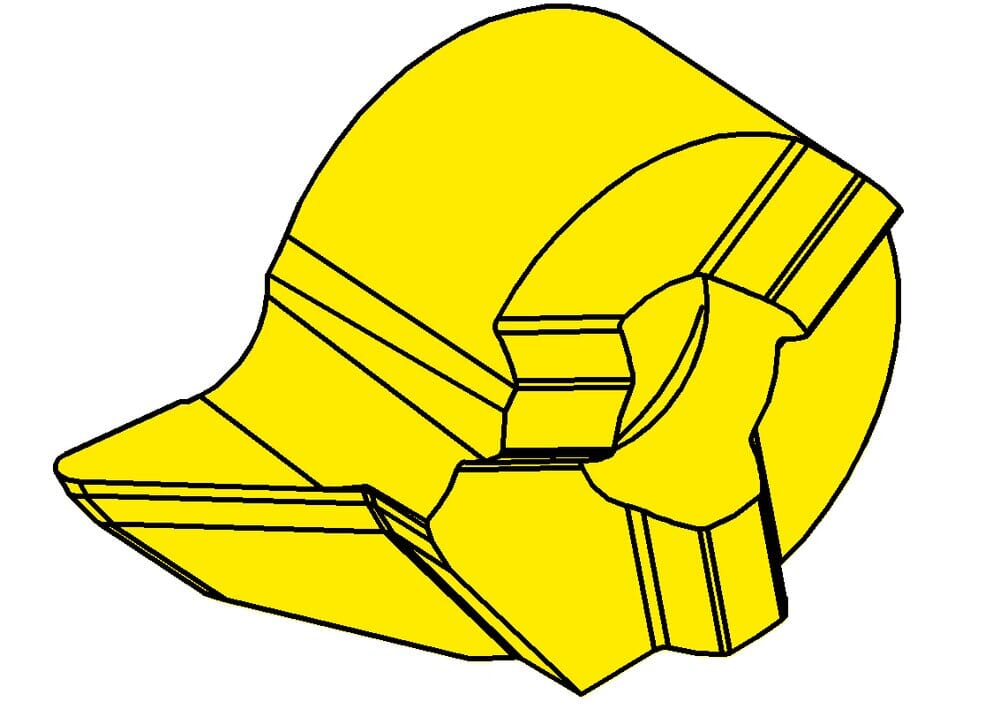

HORN Schneidplatte L114.4710.02 EG55 zum Drehen
Bitte beachten:Technologieinformationen
Spitzenradius (r)
0.2 mm
Kopfmaß (a)
15.5 mm
Maximale Stechtiefe (tmax)
5 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN114090$84L$$$$$
Katalog_SSC
114090L
Einstellmaß radial (f)
11 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
9 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.3 mm
Kleinster Bohrungsdurchmesser (Dmin)
16 mm
| Downloads | |
|---|---|
| L114471002_20230112_191722203.STP | Download |
| L114471002_20210627_200404689.DXF | Download |
