L114.4787.04 TH35
Schneidplatte
Materialnummer L114478704TH35

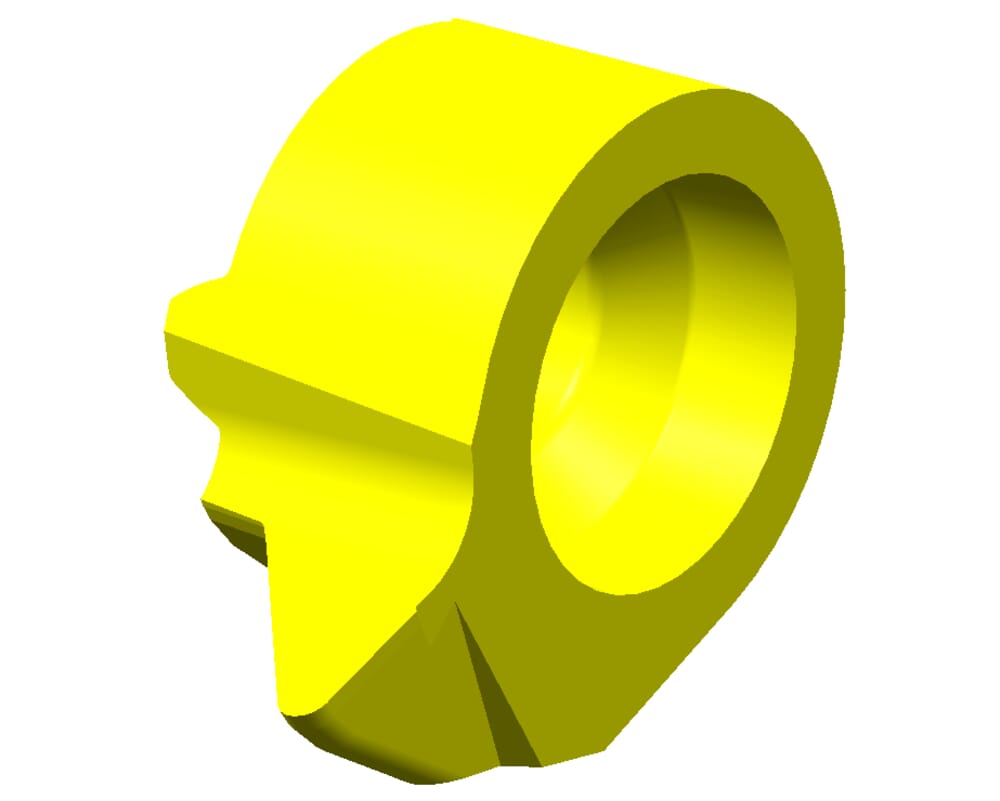

HORN Schneidplatte L114.4787.04 TH35 zum Drehen
Bitte beachten:Technologieinformationen
Spitzenradius (r)
0.4 mm
Kopfmaß (a)
13.2 mm
Maximale Stechtiefe (tmax)
3 mm
eclass-shortcut
21-18-20-11
ISO_SSC
HORN114090$84L$$$$$
Katalog_SSC
114090L
Einstellmaß radial (f)
8.7 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
9 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.3 mm
Kleinster Bohrungsdurchmesser (Dmin)
13.8 mm
| Downloads | |
|---|---|
| L114478704_20230112_191736162.STP | Download |
| L114478704_20210627_200601090.DXF | Download |
| Alle Dateien herunterladen | |
