L116.0011.22 EG55
Schneidplatte
Materialnummer L116001122EG55

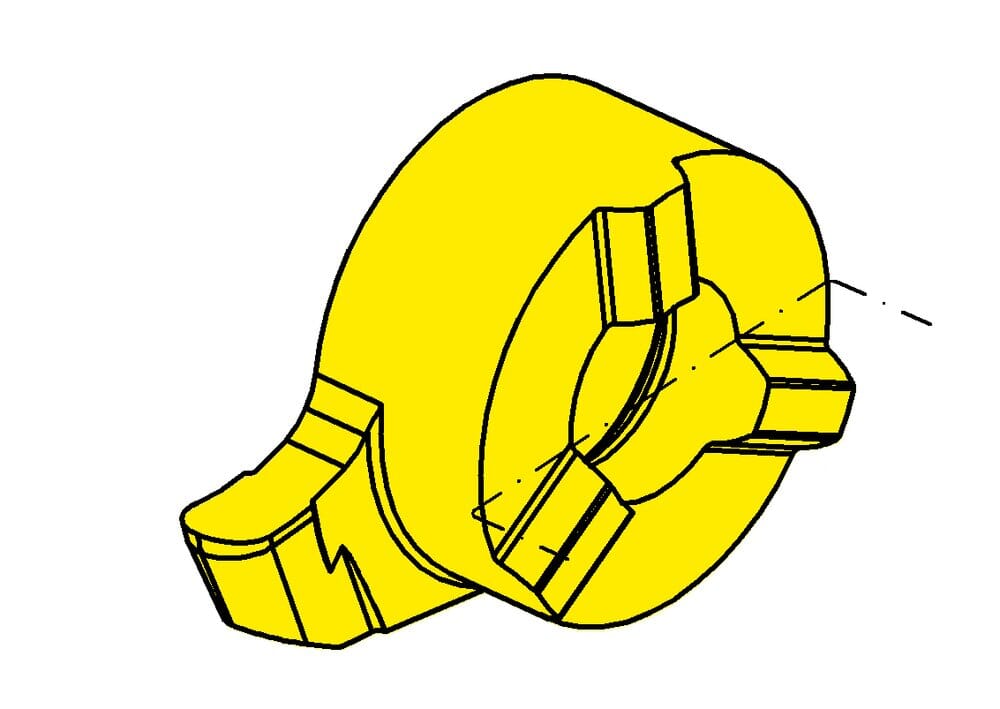

HORN Schneidplatte L116.0011.22 EG55 zum Fräsen und Drehen
Bitte beachten:Technologieinformationen
ISO_SSC
HORN116110$84L$$$$$
Zähnezahl (Z)
1
St.
Kleinster Bohrungsdurchmesser (Dmin)
16
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.3
mm
Radius, Vollradius (r)
1.1
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11
mm
Einstellmaß radial (f)
10.2
mm
Schneidbreite (w)
2.2
mm
Katalog_SSC
116110L
DIN_SSC
HORN-11611084L
eclass-shortcut
21-18-20-11
Maximale Stechtiefe (tmax)
4.3
mm
Kopfmaß (a)
15.7
mm
Schneidkreisdurchmesser (Ds)
20.4
mm
Downloads | |
---|---|
L116001122_20210630_130050905.STP | Download |
L116001122_20211119_153148471.DXF | Download |
Alle Dateien herunterladen |
