L116.0815.01 TH35
Schneidplatte
Materialnummer L116081501TH35
HORN Schneidplatte L116.0815.01 TH35 zum Gewinden
Bitte beachten:Technologieinformationen
DIN_SSC
HORN-11611084L

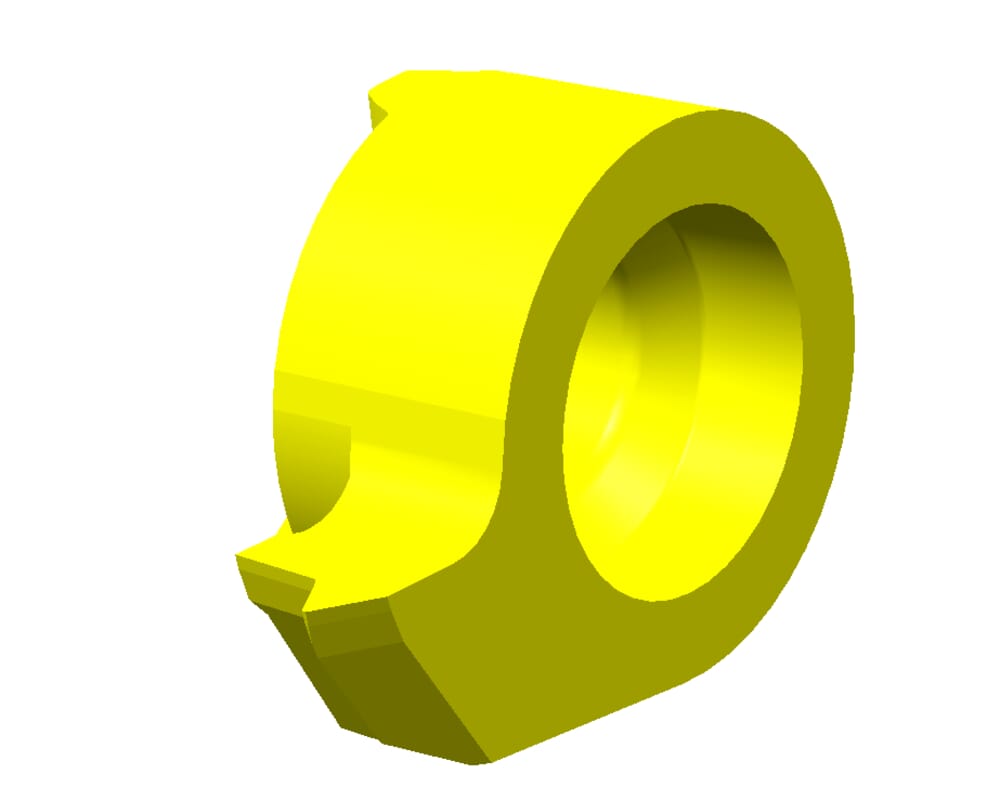

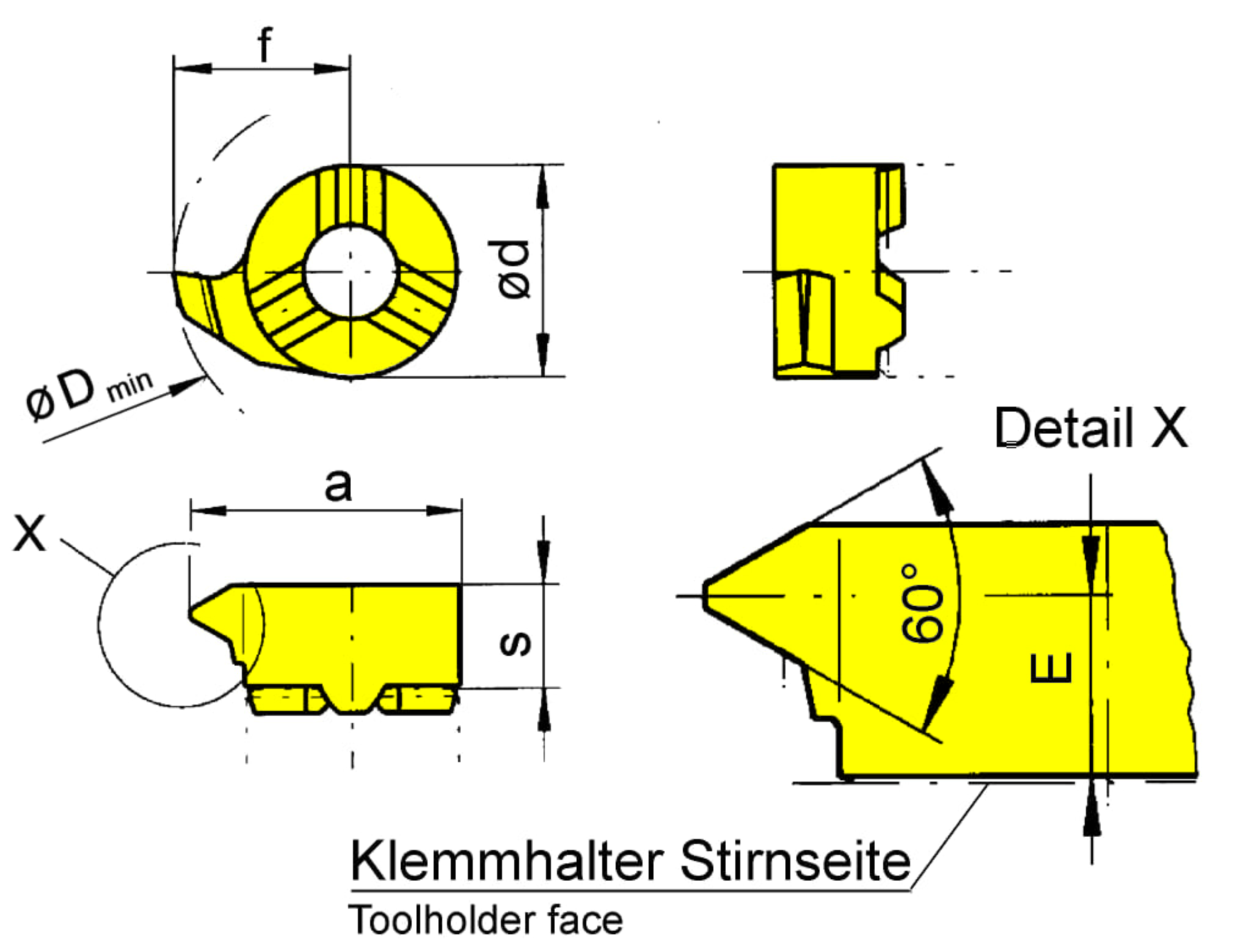

maximale Steigung (Pmax)
1.75
mm
Steigung (P)
1.5
mm
Kleinster Bohrungsdurchmesser (Dmin)
16
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5
mm
Einstellmaß Länge (E)
4.5
mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11
mm
Schneidplattenbreite (a)
15.7
mm
Einstellmaß radial (f)
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
number-of-teeth
1
St.
Downloads | |
---|---|
L116081501_20230112_194154606.STP | Download |
L116081501.DXF | Download |
Alle Dateien herunterladen |
