L116.0815.02 EG55
Schneidplatte
Materialnummer L116081502EG55

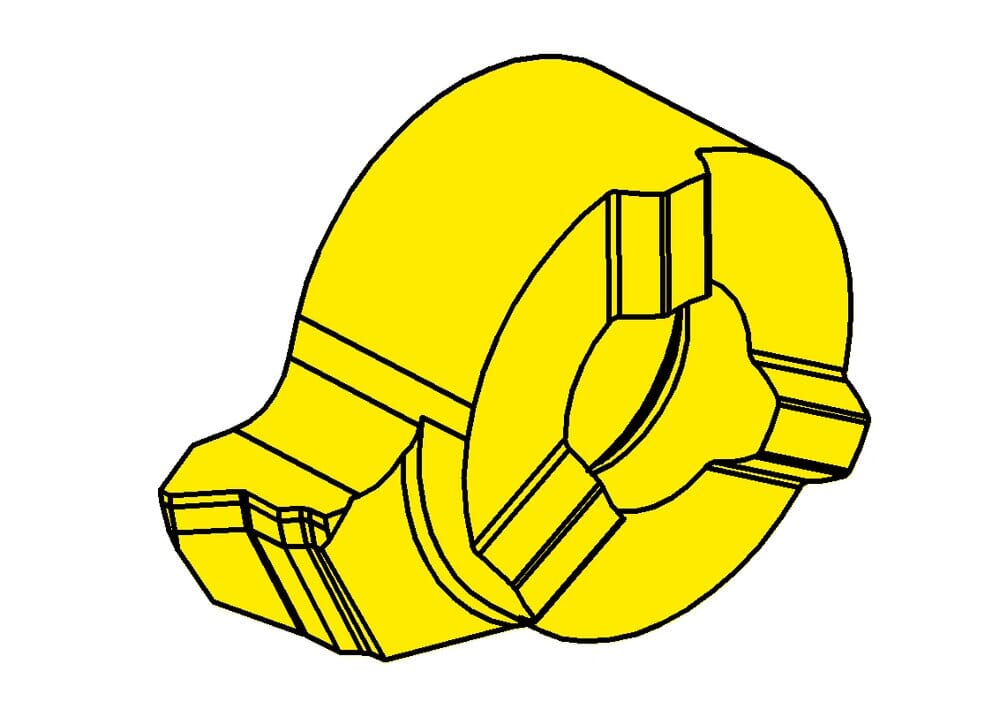

HORN Schneidplatte L116.0815.02 EG55 zum Gewinden
Bitte beachten:Technologieinformationen
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11 mm
Steigung (P)
1.5 mm
Kleinster Bohrungsdurchmesser (Dmin)
16 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5 mm
Einstellmaß Länge (E)
4.5 mm
number-of-teeth
1 St.
Schneidplattenbreite (a)
15.7 mm
Einstellmaß radial (f)
10.2 mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
