L116.0815.02 TN35
Schneidplatte
Materialnummer L116081502TN35

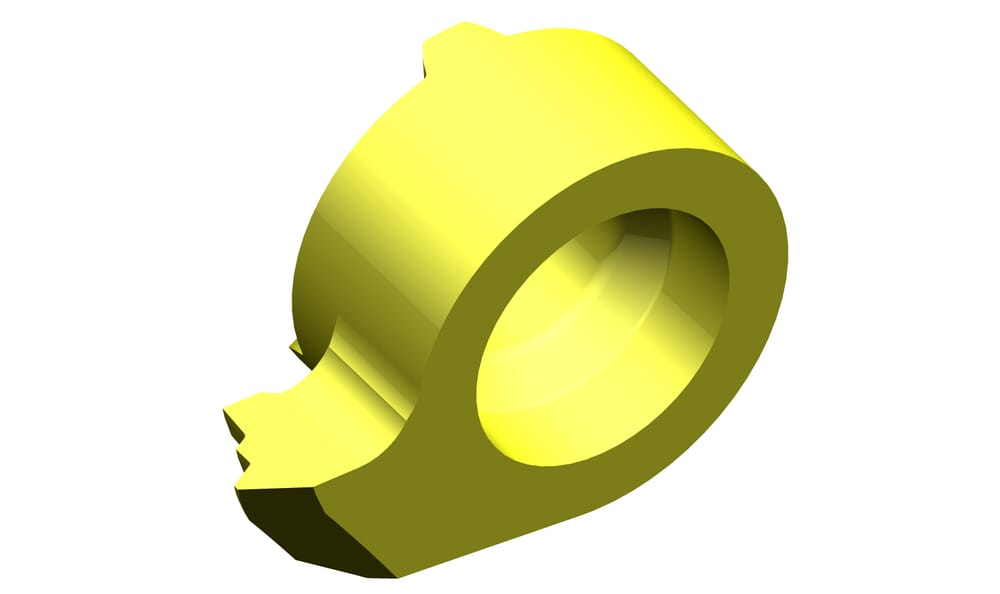

HORN Schneidplatte L116.0815.02 TN35 zum Gewinden
Bitte beachten:Technologieinformationen
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11
mm
Steigung (P)
1.5
mm
Kleinster Bohrungsdurchmesser (Dmin)
16
mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5
mm
Einstellmaß Länge (E)
4.5
mm
number-of-teeth
1
St.
Schneidplattenbreite (a)
15.7
mm
Einstellmaß radial (f)
10.2
mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L116081502_20230112_194202674.STP | Download |
| L116081502_20210627_190616879.DXF | Download |
| Alle Dateien herunterladen | |
