L116.1020.01 EG55
Schneidplatte
Materialnummer L116102001EG55

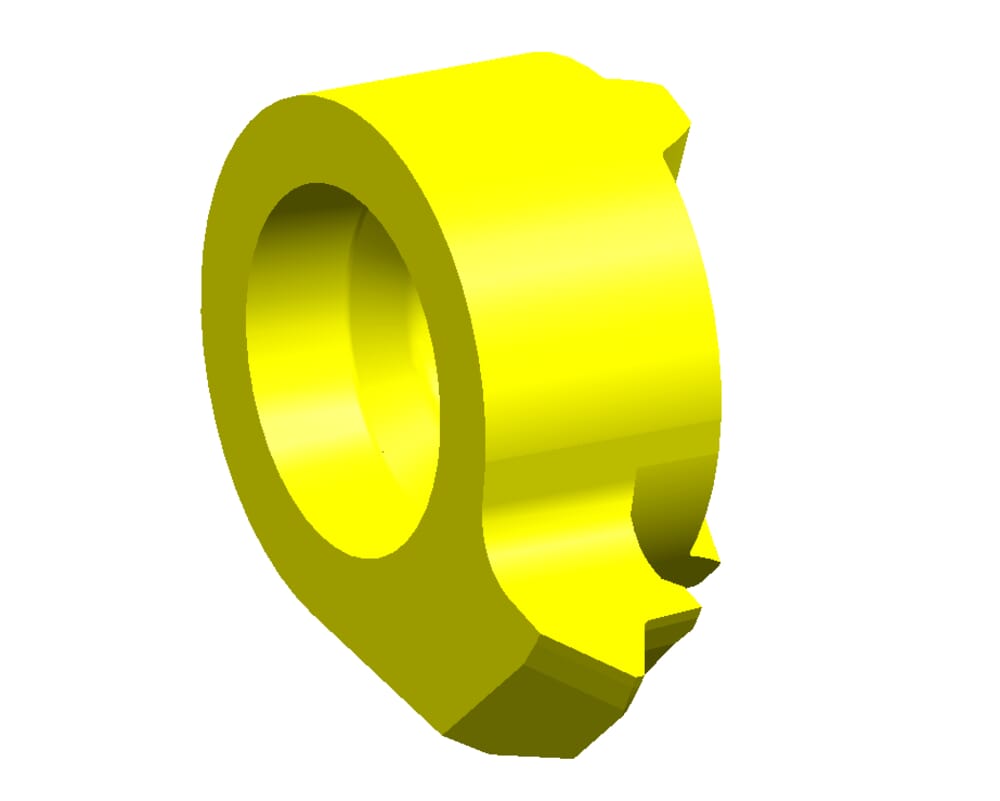

HORN Schneidplatte L116.1020.01 EG55 zum Gewinden
Bitte beachten:Technologieinformationen
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11 mm
Steigung (P)
2 mm
Kleinster Bohrungsdurchmesser (Dmin)
16 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5 mm
Einstellmaß Länge (E)
4.3 mm
number-of-teeth
1 St.
Schneidplattenbreite (a)
15.7 mm
Einstellmaß radial (f)
10.2 mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
| Downloads | |
|---|---|
| L116102001_20230112_194233325.STP | Download |
| L116102001_20210627_182522056.DXF | Download |
| Alle Dateien herunterladen | |
