L116.5514.02 EG55
Schneidplatte
Materialnummer L116551402EG55

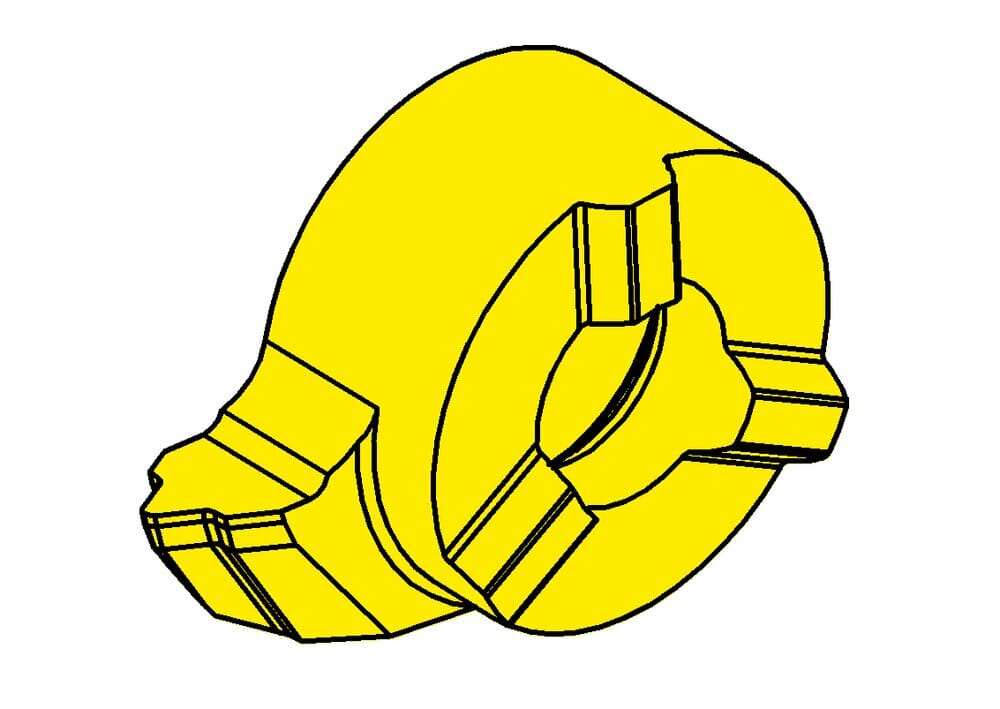

HORN Schneidplatte L116.5514.02 EG55 zum Gewinden
Bitte beachten:Technologieinformationen
cutting-insert-width-met
15.7 mm
Kleinster Bohrungsdurchmesser (Dmin)
16 mm
Schneidplattenhöhe, Schneidplattendicke (s)
5.5 mm
Einstellmaß Länge (E)
3.9 mm
Verzahnungsdurchmesser, Kopfdurchmesser (d)
11 mm
number-of-teeth
1 St.
Einstellmaß radial (f)
10.2 mm
Katalog_SSC
116110L
ISO_SSC
HORN116110$84L$$$$$
eclass-shortcut
21-18-20-11
Gang pro Zoll (TPI)
14
