R381.0080.08
Scheibenfraeser
Materialnummer R381008008

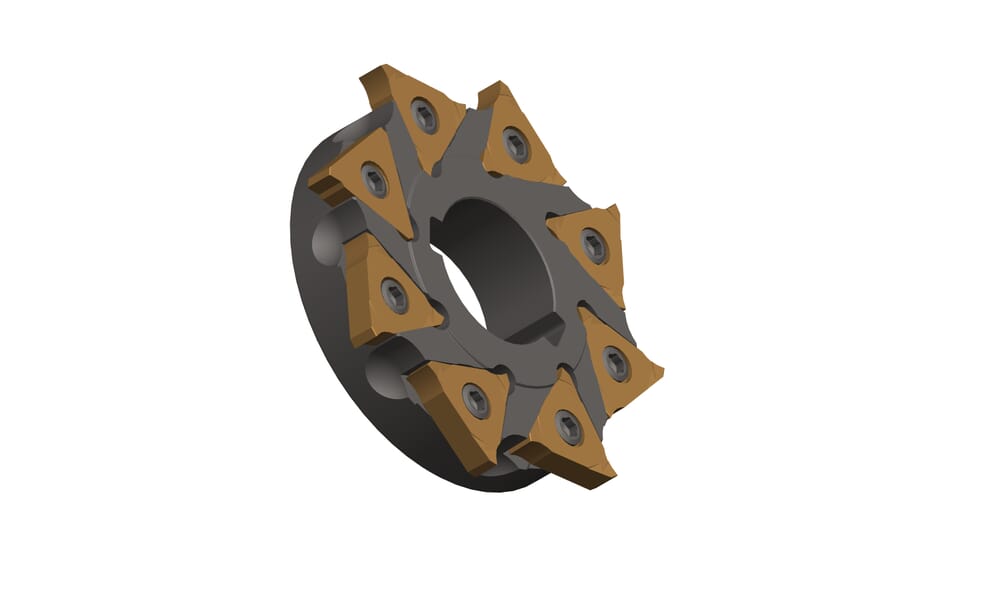

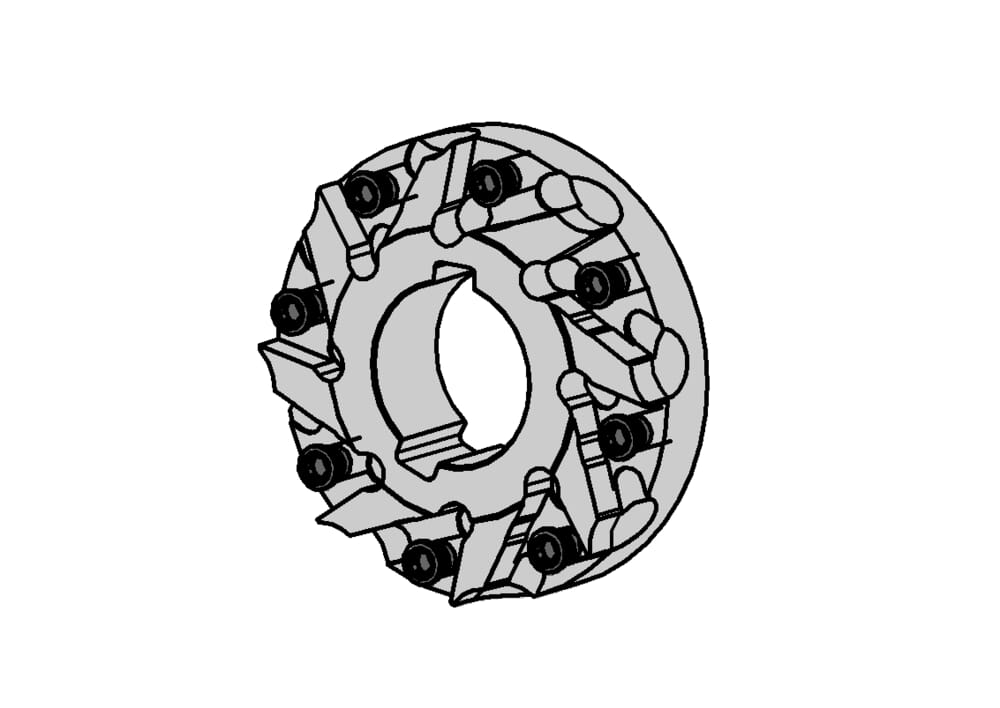

HORN Scheibenfraeser R381.0080.08 zum Fräsen
Bitte beachten:Technologieinformationen
eclass-shortcut
21-02-91-13
miller-body-diameter-met
68
mm
mounting-hole-diameter-met
27
mm
ISO_CCTMS
FDA01G2700$$$$
DIN_CCTMS
FDA02700100
Katalog_CCTWS
314027R;314041R;314052R
DIN_CCTWS
HORN-314027101R;HORN-314041101R;HORN-314052101R
ISO_CCTWS
HORN314027101R$$$$$;HORN314041101R$$$$$;HORN314052101R$$$$$
setting-angle-of-indexable-insert
10
°
number-of-teeth
8
St.
bore-diameter-met
43
mm
miller-height-met
16.2
mm
miller-height-miller-length-miller-thickness-met
16
mm
cutting-edge-diameter-met
80
mm
| Downloads | |
|---|---|
| R381008008_20210627_160204469.DXF | Download |
| R381_0080_08_20171121_192259362.STP | Download |
| Alle Dateien herunterladen | |
