1R4.M.Y.I.2000.W.40 MD10

Insert

INNEN_BOHRUNG_AUSDREHEN.EPS

WERKSTOFF_N.EPS

WERKSTOFF_O.EPS

GLANZBEARBEITUNG.EPS

Part number 1R4MYI2000W40MD10

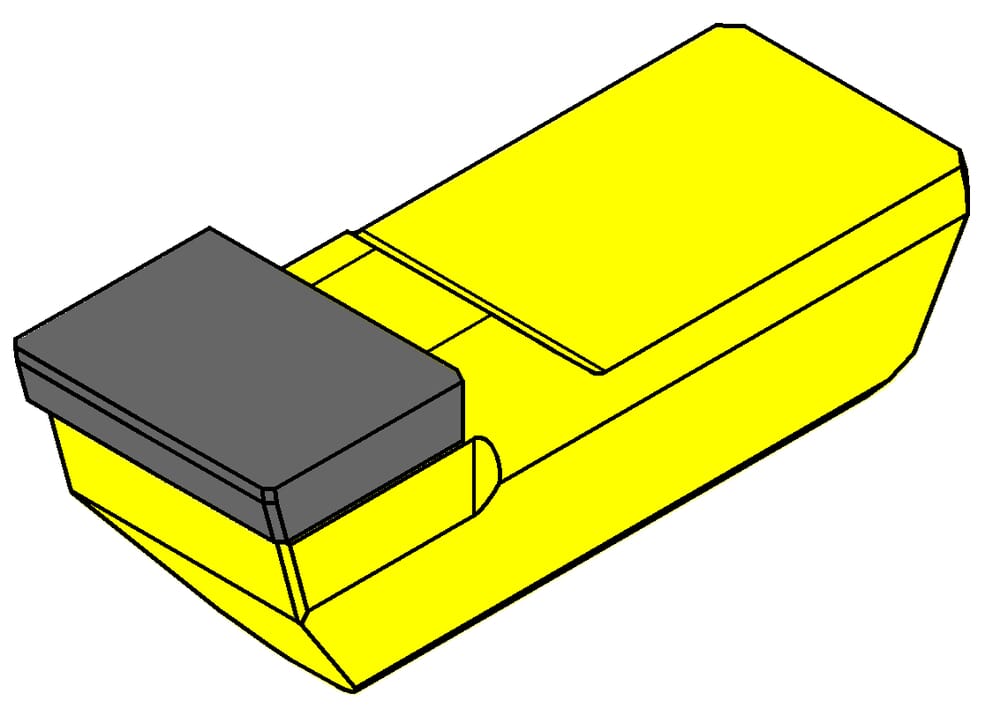

HORN Insert 1R4.M.Y.I.2000.W.40 MD10 for Turning

Please note:Technical instructions

Katalog_SSC

1R403

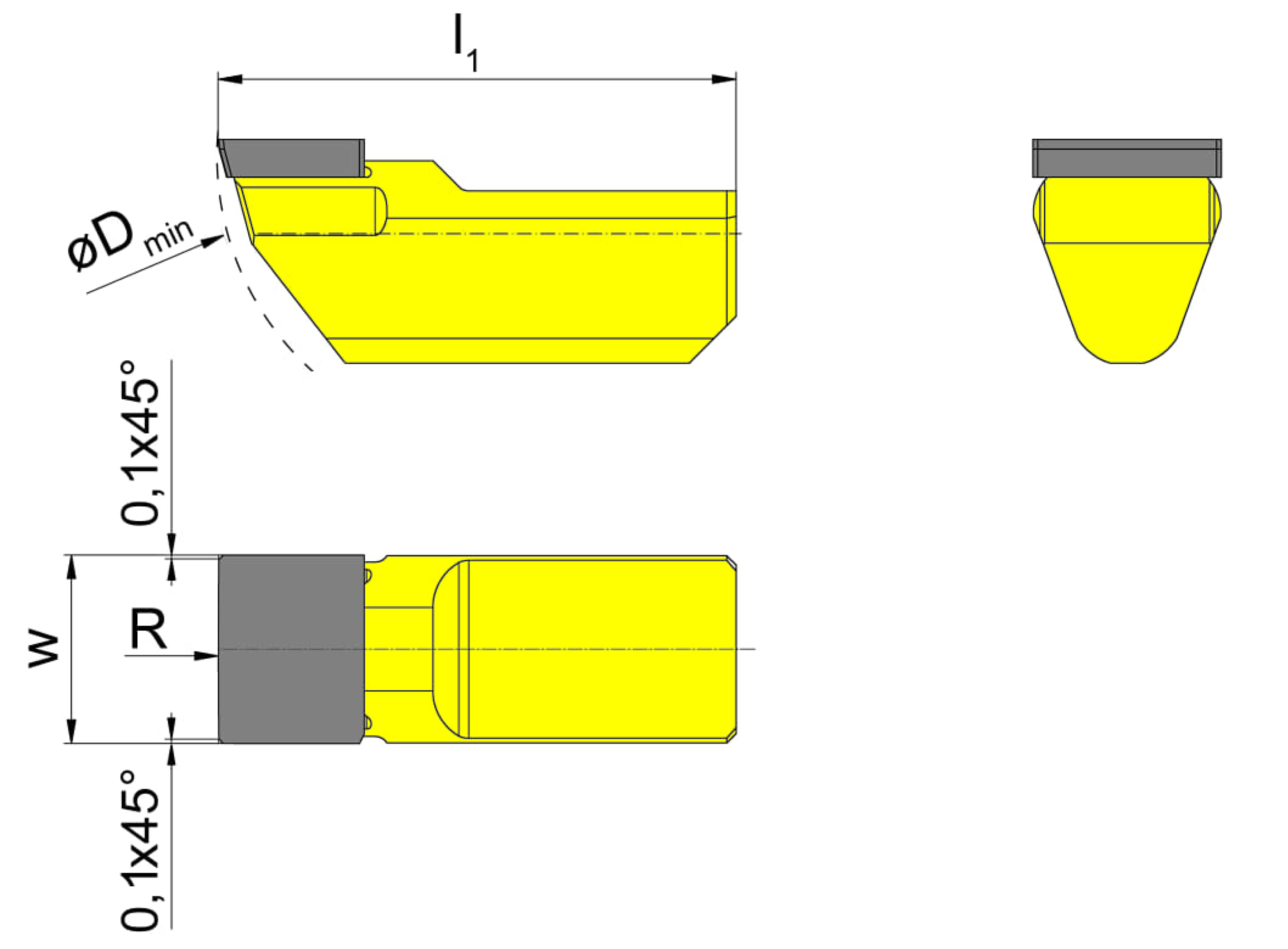

Width of groove (w)

4 mm

Radius, full-radius (R)

200 mm

Total length (l1)

11 mm

Smallest bore diameter (Dmin)

12.7 mm
