217.0015.30 P20
Inserts
Part number 217001530P20

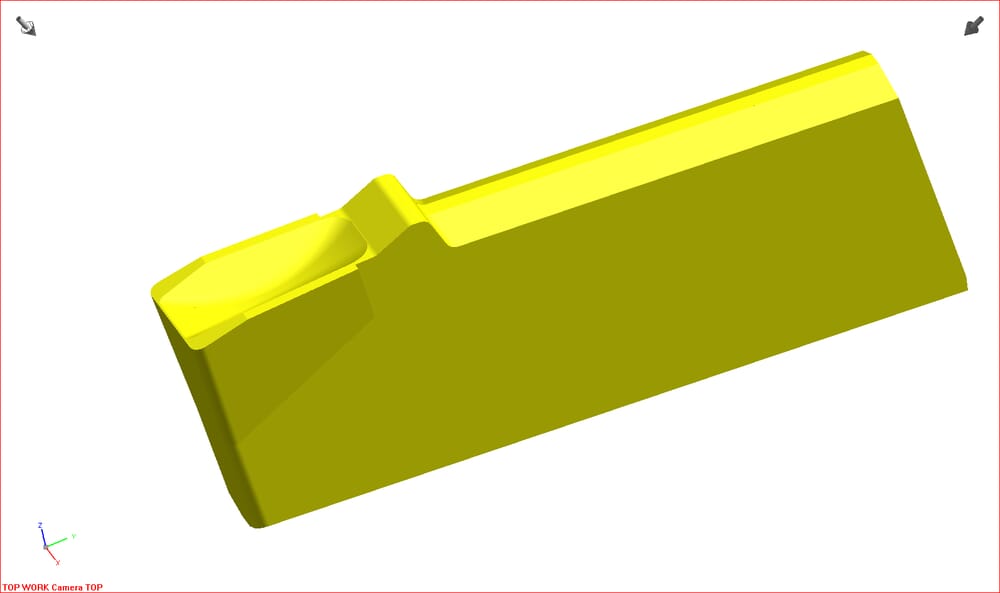

HORN Inserts 217.0015.30 P20 for Turning
Please note:Technical instructions
Cutting edge height (S)
4.9 mm
Corner radius (RE)
1.5 mm
profile distance x (PDX)
0.1 mm
Insert length (INSL)
16.75 mm
Cutting width (CW)
3 mm
| Downloads | |
|---|---|
| 217_0015_30_P20-DXF.DXF | Download |
| 217_0015_30_P20-STP.STP | Download |
| 217_0015_30_P20-ISO.XML | Download |
| 217_0015_30_P20-DIN.XML | Download |
| Download all files | |
