217181033_PICTO.TIF
217181033_PICTO.TIF 217181233.TIF

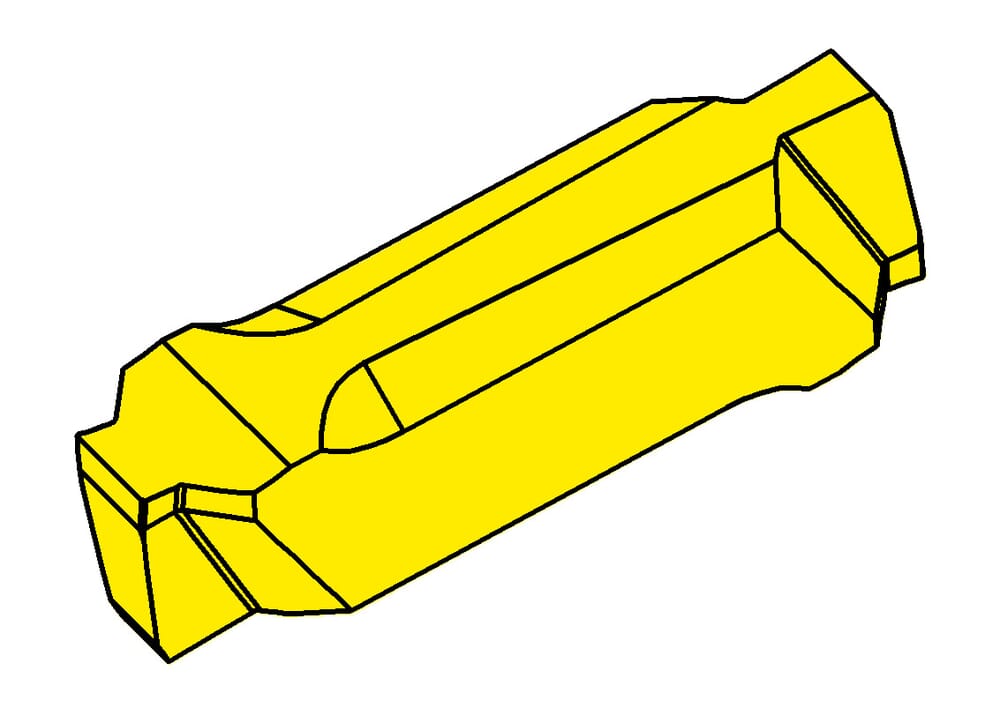

217.3118.53 TN32

Inserts

SEEGERRING.EPS AUSSEN_EINSTECHEN_MIT_NAKF.EPS

Part number 217311853TN32

HORN Inserts 217.3118.53 TN32 for Turning

Please note:Technical instructions

Cancellation (a1)
1.02 mm
Maximum depth of groove (tmax)
1.75 mm
Groove depth without groove outer edge chamfer (t1)
1.6 mm
eclass-shortcut
21-18-20-03
ISO_SSC
HORN217040008N$$$$$
Katalog_SSC
21704
Plating seat size (Größe)
4
Width of groove (w)
3.29 mm
Nominal range (Nw)
3.15 mm
Cutting insert width (s)
5.3 mm
Downloads
217311853_20230112_153036350.STP Download
217311853.DXF Download
Download all files
