229.0300.20 IG66
Insert
Part number 229030020IG66

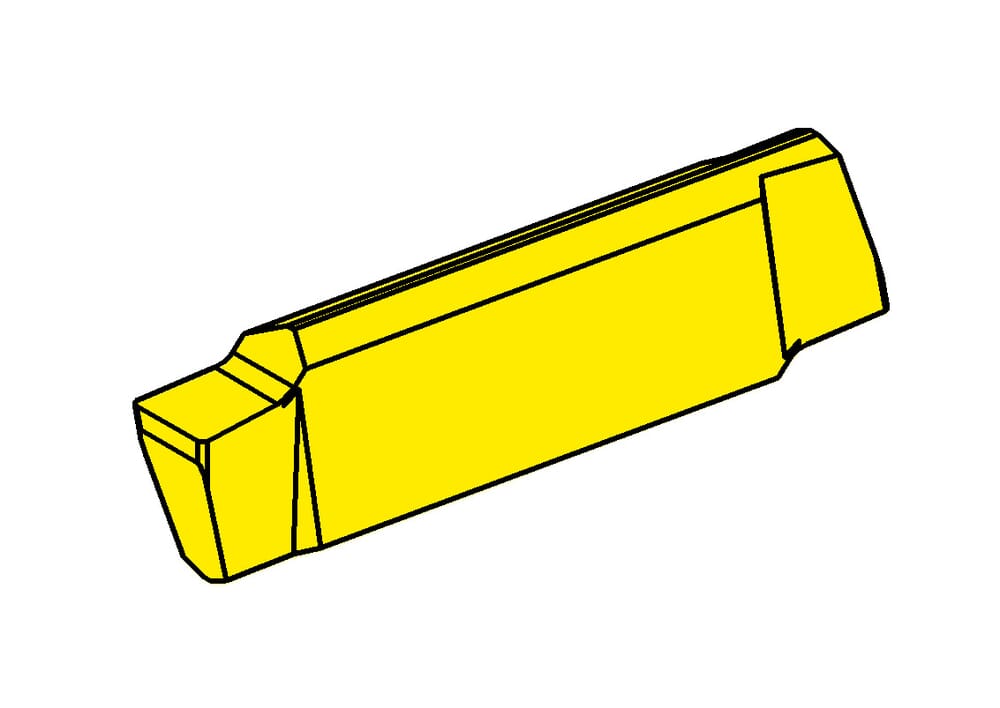

HORN Insert 229.0300.20 IG66 for Turning
Please note:Technical instructions
eclass-shortcut
21-18-20-03
Plating seat size (Größe)
2;3
Width of groove (w)
3 mm
Corner radius (r)
0.2 mm
Katalog_SSC
229020;229030
| Downloads | |
|---|---|
| 229_0300_20_IG66-DXF.DXF | Download |
| 229_0300_20_IG66-STP.STP | Download |
| 229_0300_20_IG66-ISO.XML | Download |
| 229_0300_20_IG66-DIN.XML | Download |
| Download all files | |
