264.0300.10 MG12
Inserts
Part number 264030010MG12

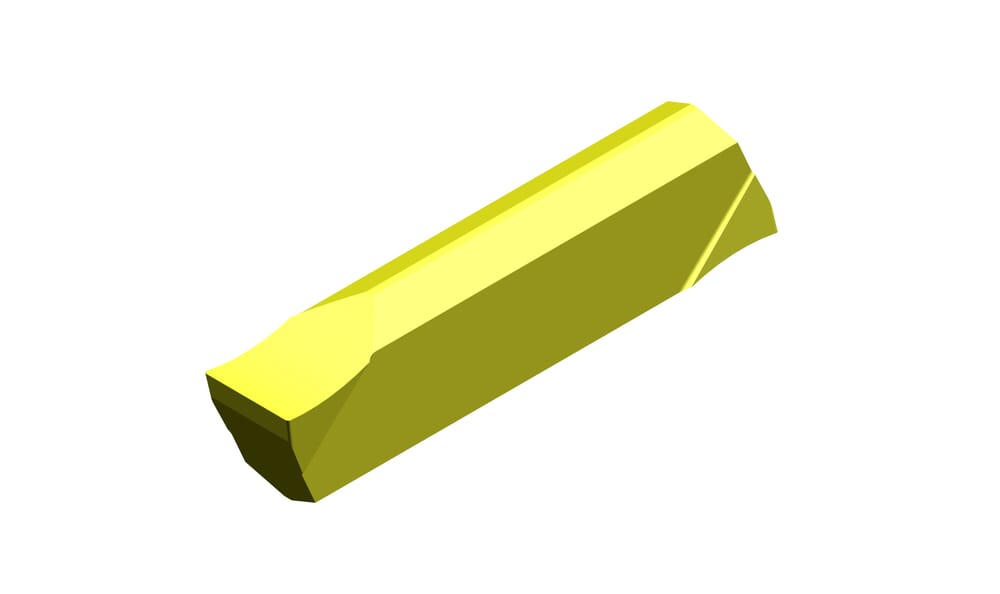

HORN Inserts 264.0300.10 MG12 for Turning
Please note:Technical instructions
Schneidkantenhöhe (S)
4 mm
Eckenradius links (REL)
0.1 mm
Eckenradius rechts (RER)
0.1 mm
Schneidplattenlänge (INSL)
18 mm
Schnittbreite, Nennmaß (CW)
3 mm
| Downloads | |
|---|---|
| 264_0300_10_20171121_233647370.STP | Download |
| 264_0300_10_MG12-ISO.XML | Download |
| 264_0300_10_MG12-DIN.XML | Download |
| 264_0300_10.DXF | Download |
| Download all files | |
