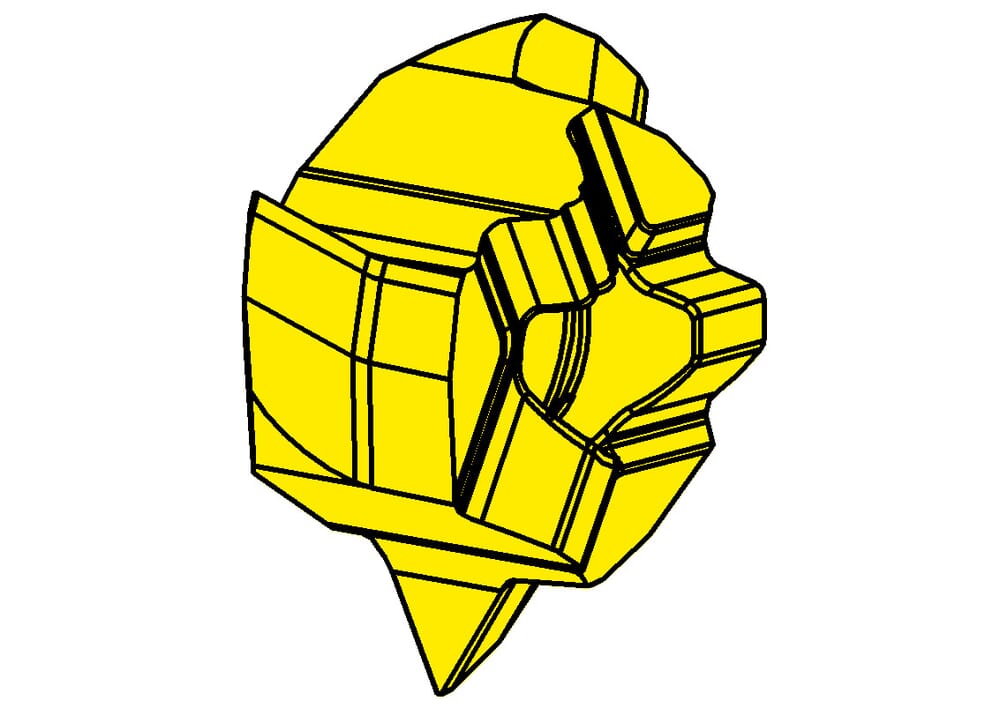

304.0515.01 AS45
Insert
Part number 304051501AS45
HORN Insert 304.0515.01 AS45 for Gewinden
Please note:Technical instructions
Cutting diameter (Ds)
7.7
mm
ISO_SSC
HORN304044$84R$$$$$
Katalog_SSC
304044R
Setting length (E)
1.9
Cutting insert height, Cutting insert thickness (s)
2.75
mm
Pitch (P)
0.5
mm
Maximum pitch (Pmax)
1.5
| Downloads | |
|---|---|
| 304_0515_01_AS45-DIN.XML | Download |
| 304_0515_01_AS45-ISO.XML | Download |
| 304_0515_01_AS45-DXF.DXF | Download |
| 304_0515_01_AS45-STP.STP | Download |
| Download all files | |
